MGS302405 footprint, schematic symbol and 3D model by Cosel

Symbol

click to zoom

PCB Footprints

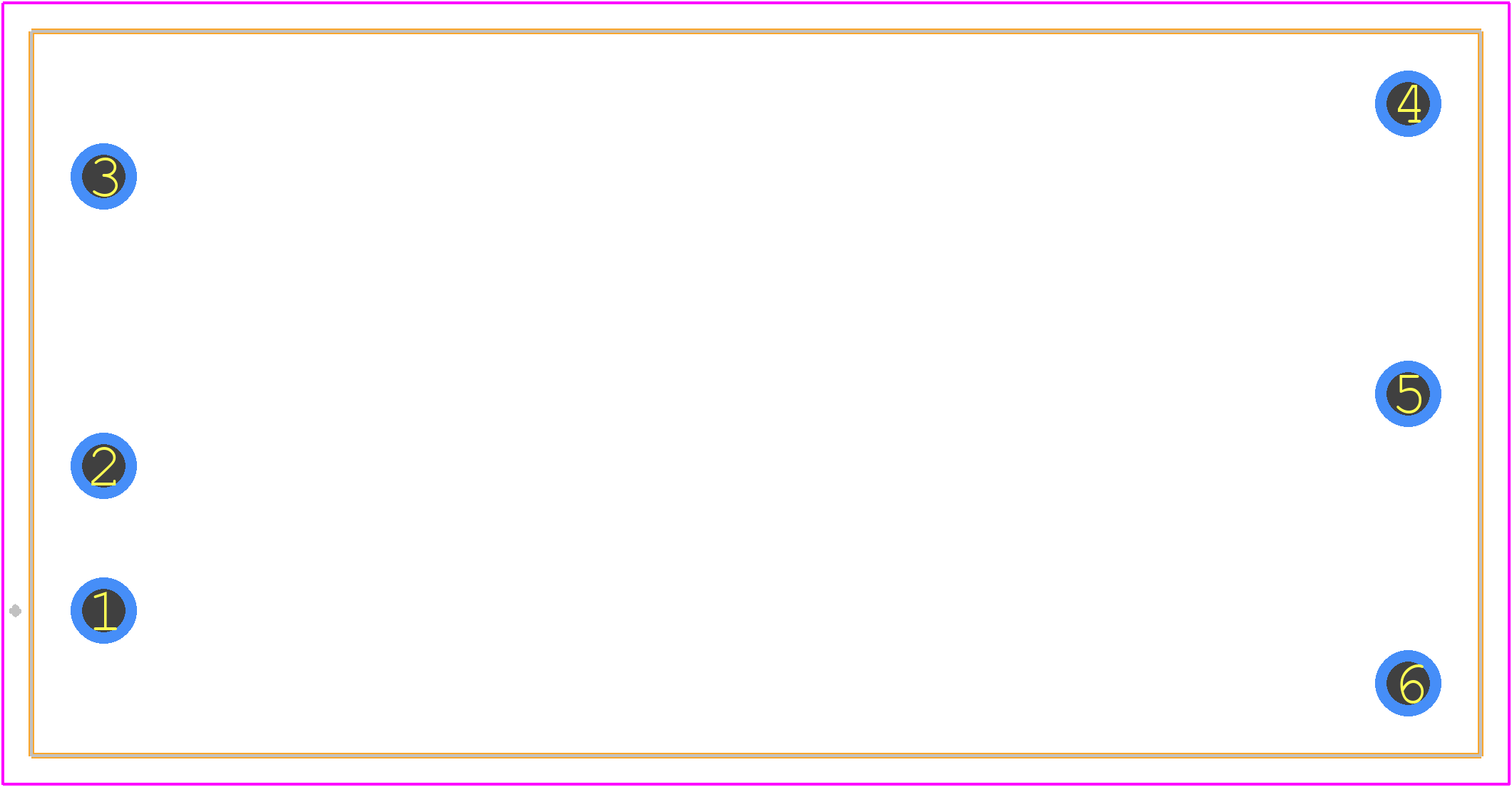

MGS302405 - Cosel PCB footprint - Other - Other - MGS302405-1

click to zoom

3D Models

MGS302405 - Cosel - 3D model - Other - MGS302405-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MGS302405
Part Number MGS302405
Manufacturer Cosel
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - MGS302405-1
Released Date Jan 18, 2019
Last Modified Date Apr 13, 2025 1:39 PM UTC
Pinout / Pin List Click Here (Member Only)

MGS302405 Details

Manufacturer Part Number:
MGS302405
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-6
ECCN Code:
EAR99
Manufacturer:
Cosel USA Inc
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL, C-UL, EN
Efficiency (Main Output):
92%
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P6
Length:
50.8 mm
Line Regulation-Max:
0.001%
Load Regulation-Max:
0.4%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Protections:
OVER CURRENT, OVER VOLTAGE
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
10.4 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
25.4 mm

MGS302405 Frequently Asked Questions (FAQs)

Cosel recommends a 4-layer PCB with a solid ground plane and a thermal relief pattern under the module. Ensure good airflow and consider adding a heat sink or thermal interface material to maintain a junction temperature below 100°C.
Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and consider adding EMI filters or shielding to minimize radiation. Consult the Cosel application note for EMC guidelines.
Derating curves are available in the Cosel application note. Apply the curves by considering the ambient temperature, input voltage, and output current to determine the maximum allowable output power.
Yes, but consult the Cosel application note for specific guidelines on redundant and parallel configurations. Ensure proper synchronization and consider using a master-slave configuration to prevent oscillations.
Consult the Cosel troubleshooting guide and application note. Check the input voltage, output voltage, and current. Verify proper PCB layout, thermal management, and EMC considerations. Use an oscilloscope to analyze the output waveform and identify potential issues.

Trust Checks

Expert Contribution

System Verified

Community Approved

MGS302405 Overview

Use the download button to access the MGS302405 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MGS30, or try a keyword search, such as Power Supply Modules
