MGS6123R3 - Cosel

Description: Cosel MGS 5.28W Isolated DC-DC Converter PCB Mount, Voltage in 9 → 18 V dc, Voltage out 3.3V dc

Download MGS6123R3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

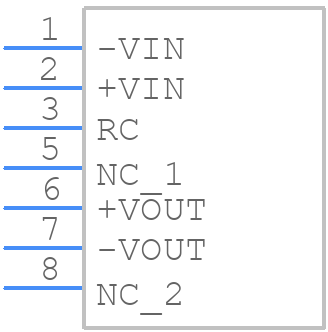

Symbol
MGS6123R3 - Cosel - PCB symbol
click to zoom
PCB Footprints
MGS6123R3 - Cosel PCB footprint - Other - Other - MGS6123R3-2
click to zoom
3D Models
MGS6123R3 - Cosel - 3D model - Other - MGS6123R3-2
click to zoom

MGS6123R3 Details

  • Manufacturer Part Number:

    MGS6123R3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CUL, EN, UL

  • Efficiency (Main Output):

    82%

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSMA-T7

  • Length:

    22 mm

  • Line Regulation-Max:

    0.00066%

  • Load Regulation-Max:

    0.606%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.6 A

  • Output Voltage-Max:

    3.42 V

  • Output Voltage-Min:

    3.21 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    OUTPUT OVER CURRENT

  • Ripple Voltage (Main Out):

    0.10605 Vrms

  • Seated Height-Max:

    12.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    5.28 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.03 s

  • Width:

    9.5 mm

MGS6123R3 Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area under the module, connected to a solid ground plane, to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up and operation, Cosel recommends using a soft-start circuit or a ramp-up circuit to limit the inrush current and voltage overshoot. Additionally, the output filter should be designed to minimize the output voltage ripple and ensure the output voltage stays within the specified range.
  • The maximum allowed output capacitance for the MGS6123R3 is 2200uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • Cosel recommends using a TVS (Transient Voltage Suppressor) diode or a surge protector at the input to protect the module from voltage transients and surges. The TVS diode should be selected based on the maximum expected input voltage and the module's input voltage rating.
  • The recommended input fuse rating for the MGS6123R3 is 5A to 10A, depending on the specific application and input voltage. The fuse should be selected based on the module's input current rating and the maximum expected input voltage.
