Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
To ensure reliable start-up and operation with a high-capacitance output filter, Cosel recommends adding a soft-start circuit or a ramp-up circuit to limit the inrush current during start-up. Additionally, the output filter should be designed to minimize the output voltage overshoot and ringing.
The maximum allowed output capacitance for the MGS62412 is not explicitly stated in the datasheet. However, as a general guideline, Cosel recommends limiting the output capacitance to 10,000 μF or less to ensure stable operation and prevent oscillations.
The MGS62412 is designed for operation up to 5,000 meters (16,400 ft) altitude and up to 80°C ambient temperature. However, derating may be necessary for operation above 3,000 meters (9,800 ft) or above 70°C. Consult Cosel's application notes or contact their technical support for specific guidance.
Cosel recommends implementing OVP using an external voltage monitoring circuit that detects overvoltage conditions and shuts down the module. The OVP threshold should be set to 10-15% above the nominal output voltage to ensure reliable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGS62412 Overview

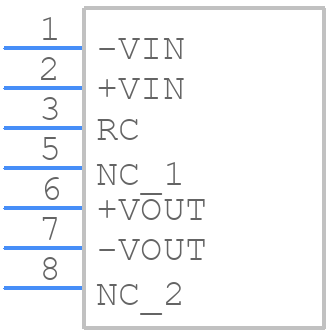

Use the download button to access the MGS62412 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MGS62,
or try a keyword search, such as Power Supply Modules
