MGVA-63+ - Mini-Circuits

Description: RF Amplifier SMT Dual Matched Amplifier, 40 - 3000 MHz, 50?

Download MGVA-63+ Model

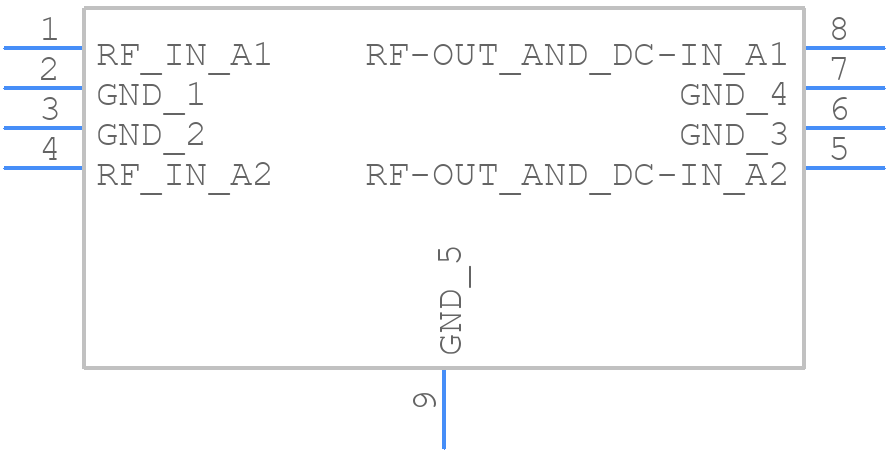

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MGVA-63+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - DL1020
click to zoom
3D Models
MGVA-63+ - Mini-Circuits  - 3D model - Small Outline No-lead - DL1020
click to zoom

MGVA-63+ Details

  • Manufacturer Part Number:

    MGVA-63+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.26

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    19.2 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    85 MHz

  • Operating Frequency-Min:

    -40 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    156 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin (Sn)

MGVA-63+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a via-stitched ground plane on the top layer. The device should be placed near the edge of the board to minimize ground inductance. A low-impedance path to ground is crucial for optimal performance.
  • To achieve the specified gain flatness and return loss, ensure that the input and output impedances are well-matched to 50 ohms. Use a high-quality PCB material with a low dielectric loss tangent, and optimize the layout to minimize parasitic inductance and capacitance.
  • The maximum safe operating temperature for the MGVA-63+ is 85°C. Operating the device above this temperature can reduce its reliability and lifespan.
  • Yes, the MGVA-63+ can be used in a push-pull or balanced configuration to improve output power and reduce even-order harmonics. However, this requires careful layout and matching of the input and output stages to maintain symmetry and minimize common-mode noise.
  • To troubleshoot common issues such as oscillation or instability, check the PCB layout for parasitic inductance and capacitance, ensure that the input and output impedances are well-matched, and verify that the power supply is clean and well-regulated. Use a spectrum analyzer or network analyzer to identify the source of the issue.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MGVA-63+ Overview

Use the download button to access the MGVA-63+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGVA-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
