Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
To ensure reliable start-up and shutdown, Cosel recommends a soft-start circuit to limit the inrush current during power-on. Additionally, a slow shutdown sequence should be implemented to prevent voltage spikes and ensure a safe shutdown process.
The maximum allowed capacitance for the output filter depends on the specific application and load characteristics. As a general guideline, Cosel recommends limiting the output capacitance to 10uF or less to prevent oscillations and ensure stability.
The MGW60515 is designed to operate in a wide range of temperatures and altitudes. However, Cosel recommends derating the output power and voltage according to the datasheet guidelines for high-altitude or high-temperature applications to ensure reliable operation.
Cosel recommends following the troubleshooting guidelines in the datasheet, which include checking the input voltage, output voltage, and current levels, as well as verifying the proper connection of the module's control pins. Additionally, Cosel provides application notes and technical support to help troubleshoot and resolve common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGW60515 Overview

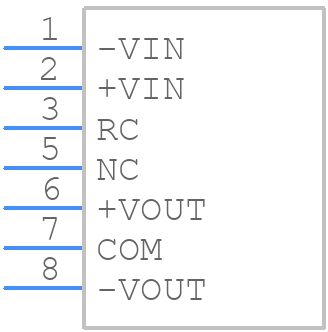

Use the download button to access the MGW60515 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGW60,
or try a keyword search, such as Power Supply Modules
