- Part Number MGXS62405
- Manufacturer Cosel
- Pin Count 7
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - MGXS62405-2
- Released Date May 5, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MGXS62405 Details
-
Manufacturer Part Number:
MGXS62405
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
PACKAGE-7
-
ECCN Code:
EAR99
-
Manufacturer:
Cosel USA Inc
-
YTEOL:
6
-
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
-
Approvals:
UL, C-UL, EN
-
Efficiency (Main Output):
88%
-
Input Voltage-Max:
60 V
MGXS62405 Frequently Asked Questions (FAQs)
-
Cosel recommends a multi-layer PCB with a solid ground plane and a thermal relief pattern under the module. A minimum of 2oz copper thickness is recommended. For thermal management, a heat sink with a thermal interface material (TIM) is recommended. The heat sink should be attached to the module using screws or a thermal adhesive.
-
To ensure reliability and longevity, Cosel recommends operating the module within the specified temperature range (–40°C to +85°C). Additionally, ensure good airflow around the module, and consider using a heat sink or thermal management system. Regular cleaning and maintenance of the module and surrounding environment can also help prevent failures.
-
The MGXS62405 is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, Cosel recommends using a metal enclosure, keeping the module away from sensitive circuits, and using EMI filters or shielding if necessary. Additionally, ensure proper grounding and decoupling of the module's input and output lines.
-
Yes, the MGXS62405 can be used in a redundant or parallel configuration. However, Cosel recommends consulting with their application engineers to ensure proper design and implementation. This may involve using external ORing diodes, redundancy controllers, or other specialized components to ensure reliable operation and fault tolerance.
-
The MGXS62405 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. Cosel recommends following proper safety guidelines when handling and installing the module, including ensuring proper electrical isolation, using protective equipment, and following local safety regulations.
Trust Checks
Expert Contribution
System Verified
Community Approved
MGXS62405 Overview

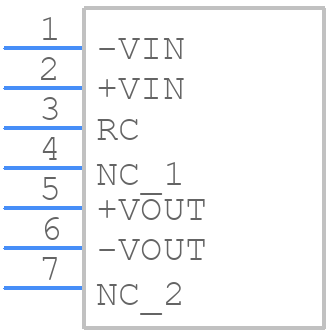

Use the download button to access the MGXS62405 schematic symbol, PCB footprint, and 3D model.
