Adam Technologies recommends a 4-layer PCB with a thermal pad on the bottom layer) connected to a large copper area on the top layer. Ensure a minimum of 1 oz copper thickness and a thermal via array under the device. Follow the recommended land pattern and keep the PCB temperature below 125°C.
Use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads. Use a reflow oven with a peak temperature of 245°C and a dwell time of 30 seconds to 60 seconds. Avoid applying excessive force or bending the component.
Store the components in their original packaging, away from direct sunlight, moisture, and extreme temperatures (above 30°C or below -20°C). Handle the components by the body, avoiding touching the pins or sensitive areas. Use ESD-safe materials and tools during assembly and testing.
Check the PCB layout, thermal management, and soldering quality. Verify the input voltage, current, and power dissipation are within the recommended specifications. Use a thermal camera or thermometer to monitor the device temperature. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, Adam Technologies recommends performing electrical characterization, thermal testing, and reliability testing according to industry standards (e.g., JEDEC, IPC). Follow the recommended test procedures and conditions outlined in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MHR-10-HUAS Overview

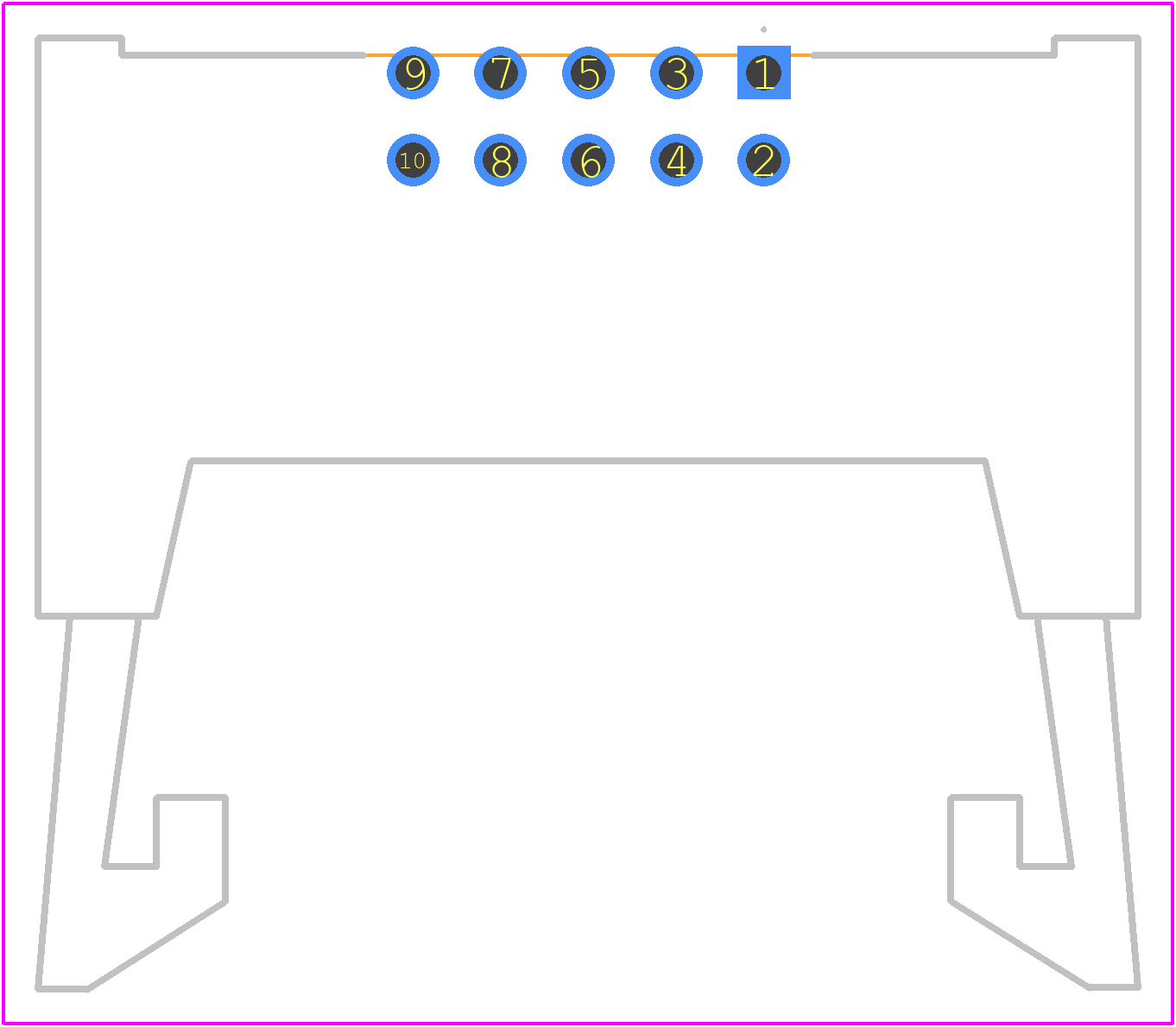

Use the download button to access the MHR-10-HUAS schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MHR-1,
or try a keyword search, such as Headers and Edge Type Connectors
