- Part Number MHS233
- Manufacturer Apem
- Pin Count 10
- Part Category Switch
- Package Category Other
- Footprint Name Other - MHS233
- Released Date Feb 5, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MHS233 Details
-
Manufacturer Part Number:
MHS233
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.50
-
Manufacturer:
APEM Inc
-
YTEOL:
0
-
Body Breadth:
6.8 mm
-
Body Height:
7.5 mm
-
Body Length or Diameter:
16 mm
-
Contact Current(DC)-Max:
0.3 A
MHS233 Frequently Asked Questions (FAQs)
-
The recommended torque for the MHS233's screw terminals is 0.8 Nm to 1.2 Nm (7 in-lbs to 10 in-lbs).
-
Yes, the MHS233 is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B standard for vibration resistance.
-
The MHS233 operates in a temperature range of -40°C to 85°C (-40°F to 185°F).
-
Yes, the MHS233 is designed to operate in harsh environments. It meets the IEC 60945 standard for marine and offshore applications, and can withstand high humidity and salt spray.
-
Yes, the MHS233 is designed for use in safety-critical applications. It meets the IEC 61508 standard for functional safety, and is suitable for use in SIL 1, 2, and 3 applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
MHS233 Overview

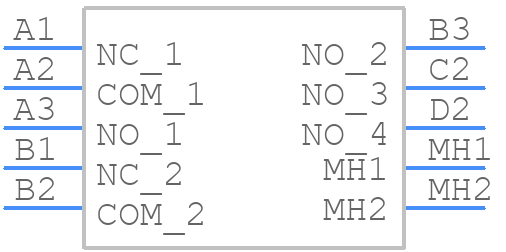

Use the download button to access the MHS233 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MHS23,
or try a keyword search, such as Slide Switches
