- Part Number MHS233K
- Manufacturer Apem
- Pin Count 10
- Part Category Switch
- Package Category Other
- Footprint Name Other - MHS233K-1
- Released Date May 18, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MHS233K Details
-
Manufacturer Part Number:
MHS233K
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.50
-
Manufacturer:
APEM Inc
-
YTEOL:
0
-
Body Breadth:
6.8 mm
-
Body Height:
7.5 mm
-
Body Length or Diameter:
16 mm
-
Contact Current(DC)-Max:
0.3 A
MHS233K Frequently Asked Questions (FAQs)
-
APEM recommends a torque of 0.8 Nm (7 lb-in) for the screw terminals to ensure reliable connections.
-
Yes, the MHS233K is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B standard for vibration resistance.
-
Yes, the MHS233K is designed to operate in harsh environments. It meets the IEC 60945 standard for marine and offshore applications, which includes resistance to humidity, salt spray, and other environmental factors.
-
APEM recommends using wires with a diameter of 0.5 mm to 1.5 mm (AWG 20 to AWG 16) for the screw terminals.
-
Yes, the MHS233K is designed to handle high inrush currents. It has a high surge withstand capability, making it suitable for applications with high inrush currents.
Trust Checks
Expert Contribution
System Verified
Community Approved
MHS233K Overview

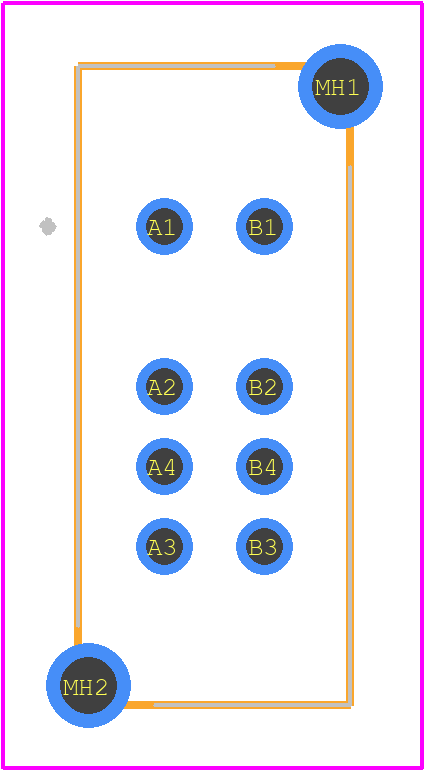

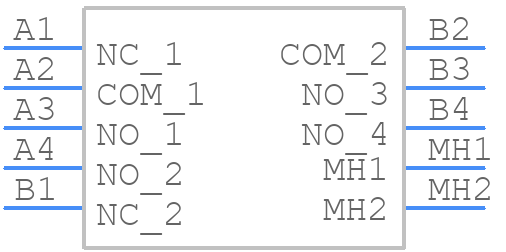

Use the download button to access the MHS233K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MHS23,
or try a keyword search, such as Slide Switches
