- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MHS233K04
- Part Number MHS233K04
- Manufacturer TE Connectivity
- Pin Count 10
- Part Category Switch
- Package Category Other
- Footprint Name Other - MHS233K04-1
- Released Date Mar 29, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MHS233K04 Details
-
Manufacturer Part Number:
MHS233K04
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
TE Connectivity
-
Actuator Color:
BLACK
-
Actuator Length:
0.18 inch
-
Actuator Material:
POLYETHYLENE
-
Actuator Travel:
2.0066 mm
MHS233K04 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
-
Yes, the MHS233K04 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
-
Yes, the MHS233K04 has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
-
The maximum operating temperature range for the MHS233K04 is -40°C to 125°C.
-
While the datasheet specifies 22-14 AWG wire sizes, it is possible to use other wire sizes with the MHS233K04, but it may require additional processing or specialized tools.
Trust Checks
Expert Contribution
System Verified
Community Approved
MHS233K04 Overview

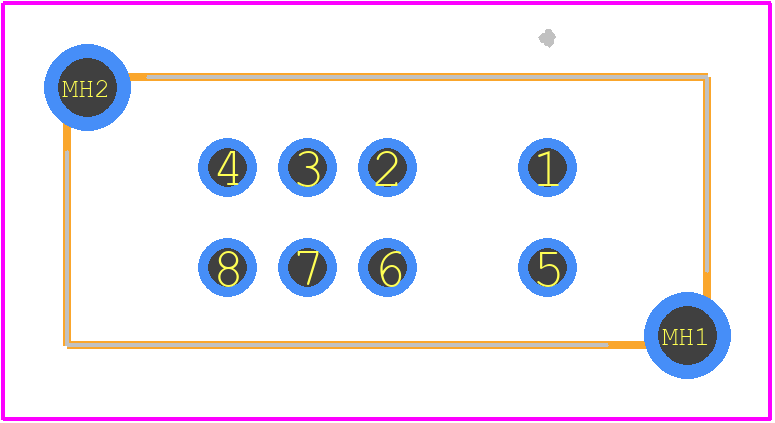

Use the download button to access the MHS233K04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MHS23,
or try a keyword search, such as Slide Switches
