The recommended PCB layout involves placing the component on a 2-layer or 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
To ensure reliable soldering, use a soldering iron with a temperature range of 250-270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or heat, and use a soldering technique that minimizes the risk of overheating or damaging the component.
Store the MHV12-180S15P in a dry, cool place away from direct sunlight and moisture. Handle the component by the body, avoiding touching the pins or electrical contacts. Use anti-static packaging and follow ESD precautions to prevent damage from electrostatic discharge.
While the MHV12-180S15P is designed to be robust, it's essential to follow the recommended mounting and assembly procedures to ensure reliable operation in high-vibration or high-shock environments. Consider using additional mechanical support or damping mechanisms to mitigate the effects of vibration or shock.
To troubleshoot issues, start by checking the power supply voltage, input/output connections, and PCB layout. Use a multimeter to measure voltage and current, and an oscilloscope to analyze waveforms. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MHV12-180S15P Overview

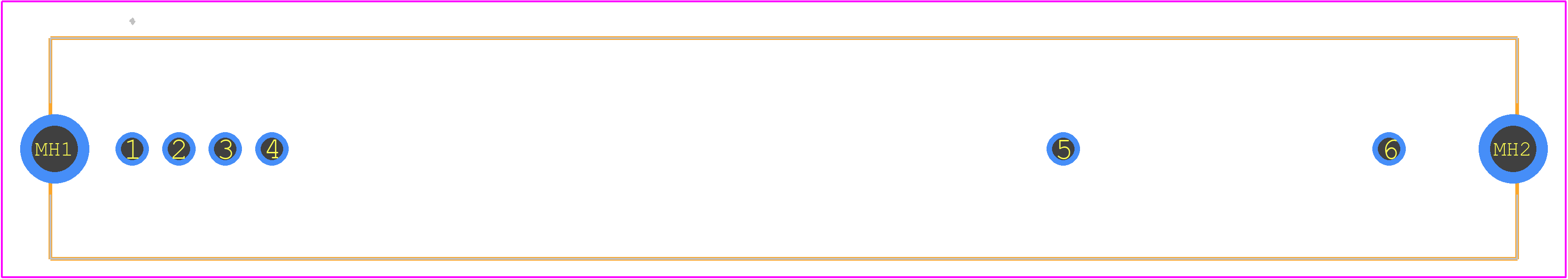

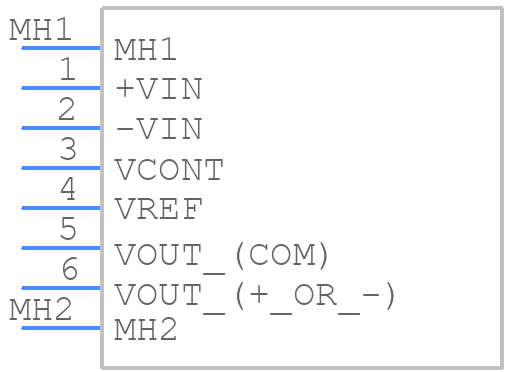

Use the download button to access the MHV12-180S15P schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MHV12,
or try a keyword search, such as Power Supply Modules
