MHV12-2.0K1000N - Bellnix

Description: High Voltage - Non-Isolated Module DC DC Converter 1 Output -2000V 1mA 10.8V - 16.5V Input

Download MHV12-2.0K1000N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

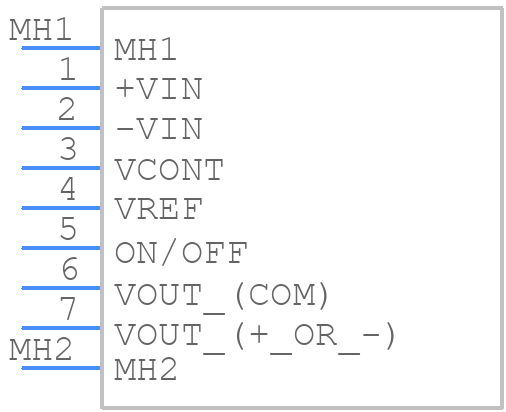

Symbol
MHV12-2.0K1000N - Bellnix - PCB symbol
click to zoom

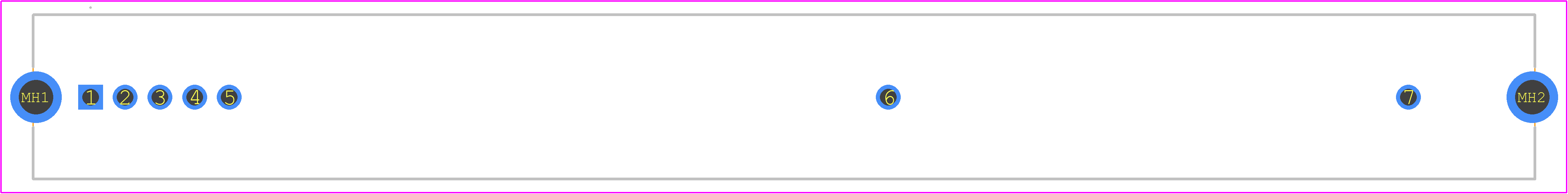

PCB Footprints
MHV12-2.0K1000N - Bellnix PCB footprint - Other - Other - MHV12-2.0K1000N-1
click to zoom
3D Models
MHV12-2.0K1000N - Bellnix - 3D model - Other - MHV12-2.0K1000N-1
click to zoom

MHV12-2.0K1000N Details

  • Manufacturer Part Number:

    MHV12-2.0K1000N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT, METAL, PACKAGE-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bellnix Co Ltd

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    16.5 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-MSMA-P7

  • Length:

    110 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Output Voltage-Min:

    -2000 V

  • Package Body Material:

    METAL

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    26 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    12 mm

MHV12-2.0K1000N Frequently Asked Questions (FAQs)

  • The recommended storage temperature for MHV12-2.0K1000N is -40°C to 125°C, as per the manufacturer's guidelines.
  • Yes, the MHV12-2.0K1000N is designed to withstand high-vibration environments, with a vibration resistance of 10G (10-2000Hz) according to the manufacturer's specifications.
  • Yes, the MHV12-2.0K1000N is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
  • The typical power derating curve for MHV12-2.0K1000N is not explicitly stated in the datasheet, but it can be obtained by contacting Bellnix Co Ltd directly or through an authorized distributor.
  • The MHV12-2.0K1000N has a moisture sensitivity level (MSL) of 3, which means it can withstand humid environments, but it's recommended to follow the manufacturer's guidelines for humidity protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MHV12-2.0K1000N Overview

Use the download button to access the MHV12-2.0K1000N schematic symbol, PCB footprint, and 3D model.
