MIC1555YMU-TR - Microchip

Description: Timers & Support Products 2.7V to 18V, "555" RC Timer/Oscillator with Trigger Input

Download MIC1555YMU-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

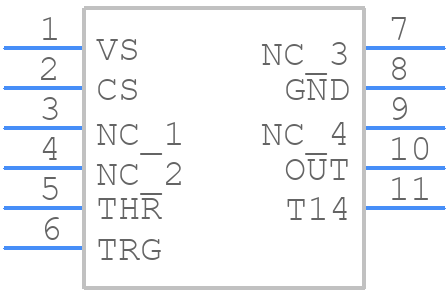

Symbol
MIC1555YMU-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC1555YMU-TR - Microchip PCB footprint - Other - Other - UTDFN22-10LD-PL-1
click to zoom
3D Models
MIC1555YMU-TR - Microchip - 3D model - Other - UTDFN22-10LD-PL-1
click to zoom

MIC1555YMU-TR Details

  • Manufacturer Part Number:

    MIC1555YMU-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    UTDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    X2DFN-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE AT 15V NOMINAL

  • Analog IC - Other Type:

    SQUARE; PULSE; RECTANGULAR

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    5 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max (Isup):

    0.3 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold Flash (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC1555YMU-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC1555YMU-TR evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The MIC1555YMU-TR has a thermal pad on the bottom of the package that should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve thermal conductivity. Additionally, ensure good airflow around the device and avoid blocking the thermal pad with components or vias.
  • The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 25V. X5R or X7R ceramic capacitors are suitable for this application. The input capacitor should be placed as close as possible to the VIN pin of the MIC1555YMU-TR.
  • Oscillations or instability issues can be caused by poor PCB layout, inadequate input/output capacitors, or incorrect component values. Check the PCB layout for noise coupling, ensure the input/output capacitors meet the recommended specifications, and verify that the component values are correct. Also, check for any signs of overheating or excessive current draw.
  • The MIC1555YMU-TR has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC1555YMU-TR Overview

Use the download button to access the MIC1555YMU-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC15, or try a keyword search, such as Analog Waveform Generation Functions
