MIC2128YML-TR - Microchip

Description: Switching Controllers 75V, Synchronous Buck Controller Featuring Adaptive On-Time Control with External Soft Start

Download MIC2128YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

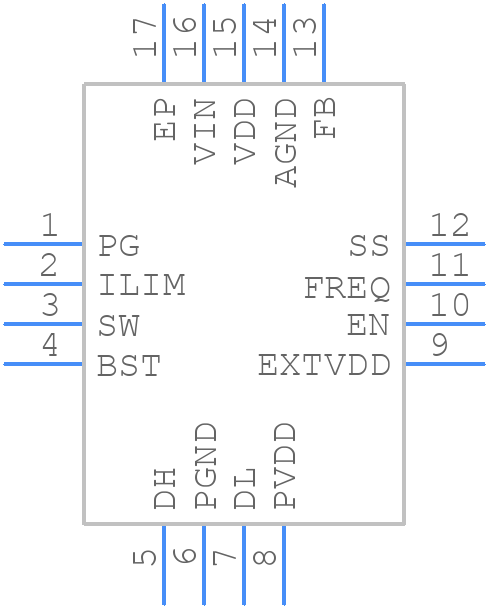

MIC2128YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2128YML-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN33-16LD-PL-3
click to zoom
3D Models
MIC2128YML-TR - Microchip - 3D model - Quad Flat No-Lead - QFN33-16LD-PL-3
click to zoom

MIC2128YML-TR Details

  • Manufacturer Part Number:

    MIC2128YML-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2017-01-06

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    30 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    1.8 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    800 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

MIC2128YML-TR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The MIC2128YML-TR should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended operating temperature range (–40°C to +125°C). Also, follow proper PCB design and layout guidelines, and provide adequate heat sinking and thermal management.
  • Handle the MIC2128YML-TR with care to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat, and avoid touching the device's pins or exposed internal components.
  • To troubleshoot issues with the MIC2128YML-TR, start by checking the power supply voltage, input/output connections, and PCB layout. Use oscilloscopes or logic analyzers to debug the device's operation. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • For high-reliability applications, consider using the MIC2128YML-TR in a redundant configuration, with built-in error detection and correction mechanisms. Ensure that the device is operated within its recommended specifications, and follow proper PCB design and manufacturing guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2128YML-TR Overview

Use the download button to access the MIC2128YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC21, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
