MIC2128YML-TRVAO - Microchip

Description: Switching Controllers 16 VQFN 3x3x0.9mm T/R

Download MIC2128YML-TRVAO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

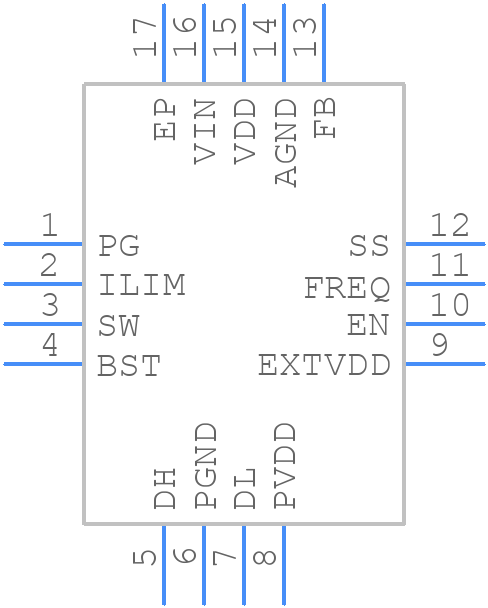

MIC2128YML-TRVAO - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2128YML-TRVAO - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN33-16LD-PL-3_2020
click to zoom
3D Models
MIC2128YML-TRVAO - Microchip - 3D model - Quad Flat No-Lead - QFN33-16LD-PL-3_2020
click to zoom

MIC2128YML-TRVAO Details

  • Manufacturer Part Number:

    MIC2128YML-TRVAO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2019-08-28

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    30 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    1.8 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    800 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

MIC2128YML-TRVAO Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended for optimal thermal performance. This helps to dissipate heat efficiently and reduce thermal resistance.
  • To ensure reliable operation across the entire operating temperature range, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure that the device is properly soldered and mounted.
  • Monitor the junction temperature (TJ), output current, and input voltage to prevent overheating. It is also essential to ensure that the device is operated within the recommended operating conditions and that the thermal design is adequate.
  • To troubleshoot issues related to output voltage regulation, check the input voltage, output voltage, and output current. Verify that the output voltage is within the specified range and that the output current is within the recommended limit. Also, check for any signs of overheating or thermal shutdown.
  • The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 10V or higher. The recommended output capacitor is a 22uF ceramic capacitor with a voltage rating of 10V or higher. These capacitors help to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2128YML-TRVAO Overview

Use the download button to access the MIC2128YML-TRVAO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC21, or try a keyword search, such as Switching Regulator or Controllers
