MIC2169YMM - Microchip

Description: Switching Voltage Regulators Replaced by MIC2169AYMM

Download MIC2169YMM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

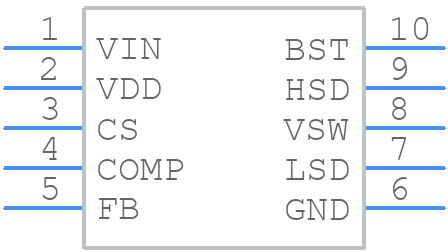

Symbol
MIC2169YMM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2169YMM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MSOP10
click to zoom
3D Models
MIC2169YMM - Microchip - 3D model - Small Outline Packages - MSOP10
click to zoom

MIC2169YMM Details

  • Manufacturer Part Number:

    MIC2169YMM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    550 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MIC2169YMM Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to have a solid copper plane on the PCB underneath the MIC2169YMM, and to use thermal vias to connect the plane to the device's thermal pad. Additionally, keeping the PCB layer stack-up symmetrical and using a thermal interface material (TIM) between the device and the heat sink can also improve thermal performance.
  • To ensure reliable start-up of the MIC2169YMM, it is recommended to use a soft-start circuit to limit the inrush current during power-up. Additionally, ensuring that the input voltage rises monotonically and that the input capacitor is properly sized can also help to ensure reliable start-up.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage can cause damage to the device. It is recommended to use a voltage divider or a clamp circuit to limit the voltage on the EN pin to within the recommended range.
  • The output voltage ripple of the MIC2169YMM can be calculated using the following formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
  • The recommended input capacitor type for the MIC2169YMM is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The recommended value is 10uF to 22uF, depending on the input voltage and output current requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2169YMM Overview

Use the download button to access the MIC2169YMM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC21, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
