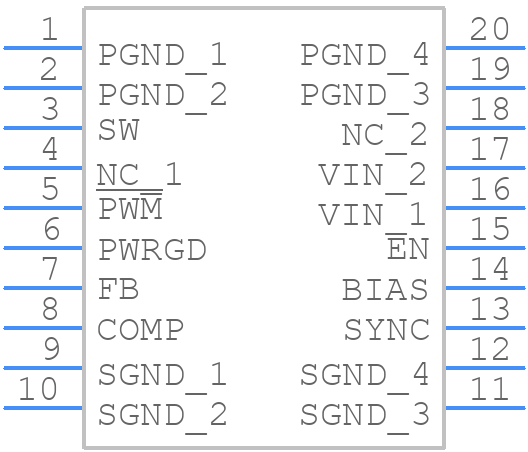

MIC2179-3.3YSM - Microchip

MIC2179-3.3YSM Details

• Manufacturer Part Number:

  MIC2179-3.3YSM

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SSOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  SSOP-20

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  7

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  16.5 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  7 V

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  7.2 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.5 A

• Output Voltage-Max:

  3.46 V

• Output Voltage-Min:

  3.14 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.2 mm

• Supply Current-Max (Isup):

  1.5 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  240 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  5.3 mm
