A good PCB layout for optimal thermal performance involves placing the MIC2211-GSYML-TR near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the thermal path short and direct can help to reduce thermal resistance.
To ensure reliable operation over the full temperature range, it is essential to follow proper PCB design and layout guidelines, ensure good thermal management, and operate the device within its specified voltage and current ratings. Additionally, consider using a thermistor or thermocouple to monitor the device temperature and implement thermal protection if necessary.
Operating the MIC2211-GSYML-TR outside the recommended input voltage range may affect its performance, efficiency, and reliability. A lower input voltage may reduce the output current capability, while a higher input voltage may increase the power dissipation and reduce the device's lifespan. It is essential to consult the datasheet and application notes for specific guidance on input voltage tolerance.
To troubleshoot issues with the MIC2211-GSYML-TR, start by verifying the input voltage, output current, and thermal conditions. Check for proper PCB layout, thermal management, and component selection. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify potential issues. Consult the datasheet, application notes, and Microchip's technical support resources for guidance on troubleshooting and debugging.
To minimize EMI and EMC issues with the MIC2211-GSYML-TR, follow proper PCB design and layout guidelines, use shielding and filtering components as necessary, and ensure good grounding and decoupling practices. Additionally, consider using EMI filters or common-mode chokes to reduce electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC2211-GSYML-TR Overview

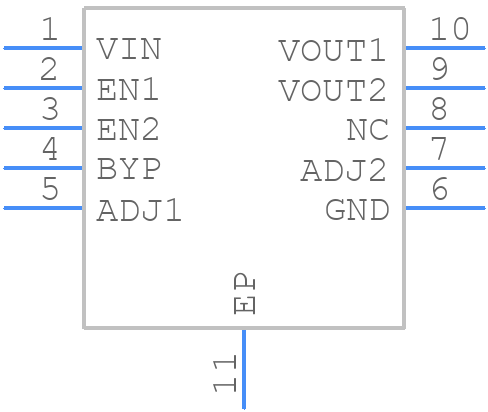

Use the download button to access the MIC2211-GSYML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC22,
or try a keyword search, such as Linear Regulator ICs
