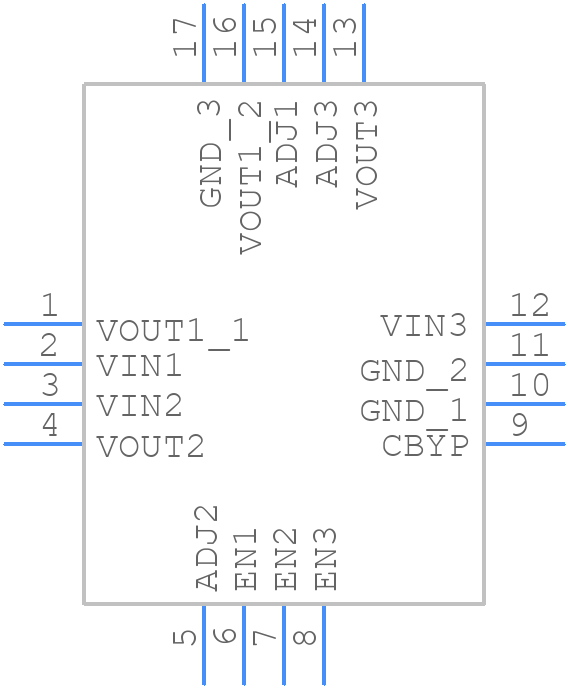

MIC2215-AAAYML-TR - Microchip

MIC2215-AAAYML-TR Details

• Manufacturer Part Number:

  MIC2215-AAAYML-TR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  QFN-16

• Pin Count:

  16

• Manufacturer Package Code:

  VQFN-16

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.275 V

• Dropout Voltage1-Nom:

  0.17 V

• Dropout Voltage2-Max:

  0.275 V

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e4

• Length:

  4 mm

• Line Regulation-Max (%/V):

  0.3

• Load Regulation-Max(%):

  0.5%

• Moisture Sensitivity Level:

  2

• Number of Functions:

  3

• Number of Outputs:

  3

• Number of Terminals:

  16

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.25 A

• Output Current2-Max:

  0.25 A

• Output Voltage1-Max:

  5.225 V

• Output Voltage1-Min:

  1.25 V

• Output Voltage2-Max:

  5.225 V

• Output Voltage2-Min:

  1.25 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC16,.16SQ,25

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.9 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  4 mm
