Microchip provides a recommended PCB layout in the MIC22205 evaluation board user's guide, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as output voltage, current, and ripple. Microchip recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The datasheet provides a list of recommended capacitors, and additional guidance can be found in the application notes.
The thermal derating for MIC22205YML-TR is specified in the datasheet, and it depends on the ambient temperature and the package type. As the ambient temperature increases, the maximum output current decreases to prevent overheating. Engineers should consult the datasheet and thermal derating curves to determine the maximum output current for their specific application.
Yes, MIC22205YML-TR is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a robust process that ensures high reliability and low defect rates. However, engineers should consult the datasheet and Microchip's quality and reliability documentation to ensure that the device meets the specific requirements of their application.
Microchip provides a troubleshooting guide in the application notes, which covers common issues and their solutions. Engineers can also consult the datasheet, evaluation board user's guide, and online resources, such as Microchip's forums and knowledge base, for additional guidance and support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC22205YML-TR Overview

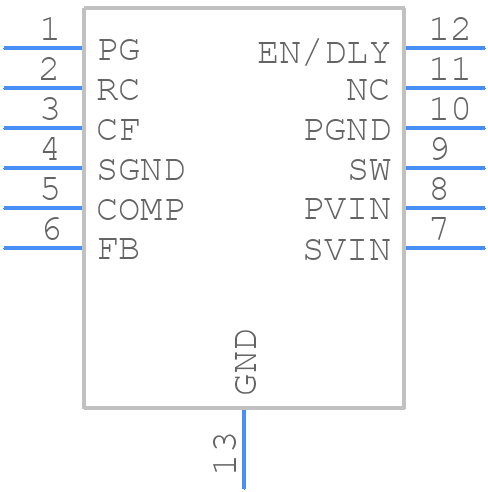

Use the download button to access the MIC22205YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC22,
or try a keyword search, such as Switching Regulator or Controllers
