MIC2230-AAYML-TR - Microchip

Description: Switching Voltage Regulators High Efficiency Dual 800/800mA Buck Switcher with Fast Transient

Download MIC2230-AAYML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

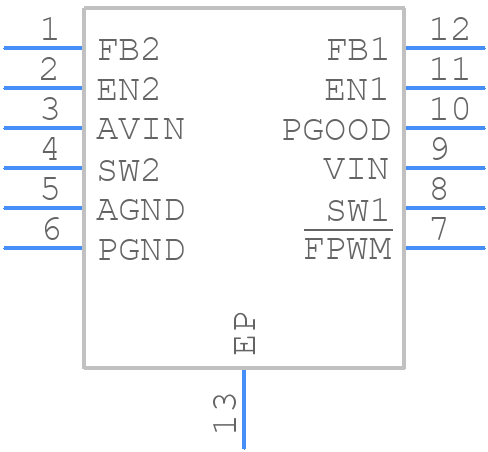

Symbol
MIC2230-AAYML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2230-AAYML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN33-12LD-PL-1
click to zoom
3D Models
MIC2230-AAYML-TR - Microchip - 3D model - Small Outline No-lead - DFN33-12LD-PL-1
click to zoom

MIC2230-AAYML-TR Details

  • Manufacturer Part Number:

    MIC2230-AAYML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON, SOLCC12,.12,20

  • Pin Count:

    12

  • Manufacturer Package Code:

    VDFN-12

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Output Voltage-Max:

    0.82 V

  • Output Voltage-Min:

    0.78 V

  • Output Voltage-Nom:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    0.95 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2875 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MIC2230-AAYML-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the MIC2230-AAYML-TR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is properly sized and placed close to the device. Also, ensure the input voltage is within the recommended range, and the input capacitor is properly sized and placed close to the device. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The MIC2230-AAYML-TR has an operating ambient temperature range of -40°C to +125°C. However, the device can be operated at a maximum junction temperature of 150°C.
  • Yes, the MIC2230-AAYML-TR is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
  • To troubleshoot issues with the MIC2230-AAYML-TR, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, and ensure that the device is operated within its specified parameters. If the issue persists, consult the datasheet and application notes for further guidance.
