MIC2230-S4YML-TR - Microchip

Description: Switching Voltage Regulators High Efficiency Dual 800/800mA Buck Switcher with Fast Transient

Download MIC2230-S4YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

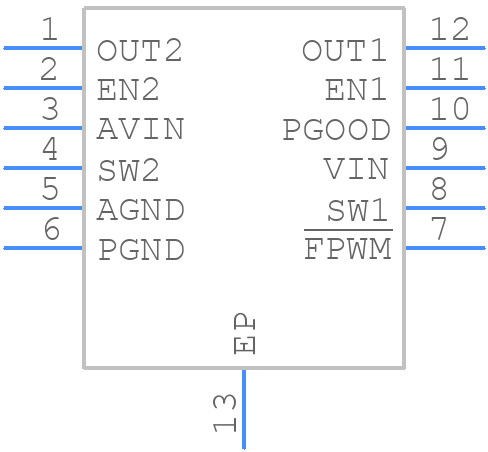

MIC2230-S4YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2230-S4YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN33-12LD-PL-1
click to zoom
3D Models
MIC2230-S4YML-TR - Microchip - 3D model - Small Outline No-lead - DFN33-12LD-PL-1
click to zoom

MIC2230-S4YML-TR Details

  • Manufacturer Part Number:

    MIC2230-S4YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    VDFN-12

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 3.3V; PFM CONTROL TECHNIQUE; IT ALSO HAS ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.8V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Output Voltage-Max:

    1.23 V

  • Output Voltage-Min:

    1.17 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    0.95 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2875 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MIC2230-S4YML-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC2230 evaluation board user's guide, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of input and output capacitors depends on the specific application requirements, such as output voltage, current, and ripple. Microchip recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The datasheet provides a list of recommended capacitors, and additional guidance can be found in the MIC2230 application note.
  • The MIC2230-S4YML-TR has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal management system used. Microchip recommends following the thermal design guidelines in the datasheet and application note to ensure reliable operation.
  • Microchip provides a troubleshooting guide in the MIC2230 application note, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify the root cause of the issue and consult with Microchip's technical support team for further assistance.
  • Yes, the MIC2230-S4YML-TR is compatible with lead-free soldering processes. Microchip ensures that all its products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, and the device can be soldered using lead-free soldering techniques.
