Part Image

MIC2282YMM - Microchip

Description: LED Lighting Drivers Single-Cell Ultra Low EMI Boost LED Driver

Download MIC2282YMM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

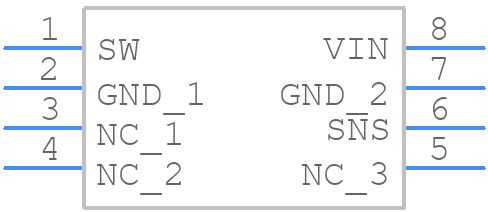

MIC2282YMM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2282YMM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN MSOP-ren1
click to zoom
3D Models
MIC2282YMM - Microchip - 3D model - Small Outline Packages - 8-PIN MSOP-ren1
click to zoom

MIC2282YMM Details

  • Manufacturer Part Number:

    MIC2282YMM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MIC2282YMM Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC2282YMM evaluation board design files, which can be downloaded from their website. The layout includes guidelines for component placement, thermal management, and routing to minimize noise and EMI.
  • The selection of input and output capacitors depends on the specific application requirements, such as output voltage, current, and ripple. Microchip recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The datasheet provides a detailed capacitor selection guide.
  • The MIC2282YMM is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to consider the thermal management and derating factors when designing the system.
  • Yes, the MIC2282YMM is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific application requirements.
  • Microchip provides a troubleshooting guide in the datasheet and application notes, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and thermal imaging cameras to diagnose and debug the issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2282YMM Overview

Use the download button to access the MIC2282YMM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC22, or try a keyword search, such as Display Drivers
