Microchip provides a recommended PCB layout in the MIC2293 datasheet, which includes guidelines for component placement, thermal management, and routing. Additionally, it's recommended to follow general high-frequency PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
The MIC2293-34YML-TR has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. Additionally, it's recommended to use thermal vias to connect the thermal pad to the ground plane, and to use a heat sink or thermal interface material if necessary. The datasheet provides thermal resistance and power dissipation guidelines to help with thermal management.
The recommended input capacitor value and type depend on the specific application and input voltage. In general, a low-ESR ceramic capacitor with a value between 1uF and 10uF is recommended. The datasheet provides guidelines for input capacitor selection and placement.
To troubleshoot issues with the MIC2293-34YML-TR, start by checking the input voltage, output voltage, and current draw. Verify that the component is properly soldered and that the PCB layout follows the recommended guidelines. Use an oscilloscope to check for voltage ripple, noise, or oscillations. Check the thermal management and ensure that the device is not overheating. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Yes, the MIC2293-34YML-TR is compatible with lead-free soldering processes. The device is RoHS-compliant and can be soldered using lead-free solder alloys. However, it's recommended to follow the recommended soldering profile and guidelines to ensure reliable assembly and operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC2293-34YML-TR Overview

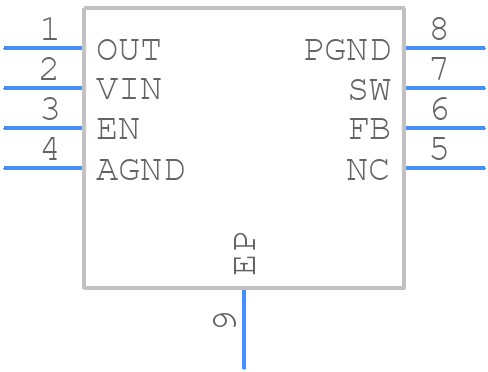

Use the download button to access the MIC2293-34YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC22,
or try a keyword search, such as Display Drivers
