MIC2297-38YML-TR - Microchip

Description: 1.2MHz 1.2A PWM Boost Converter / 10 VDFN 2.5x2.5x0.9mm T/R

Download MIC2297-38YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

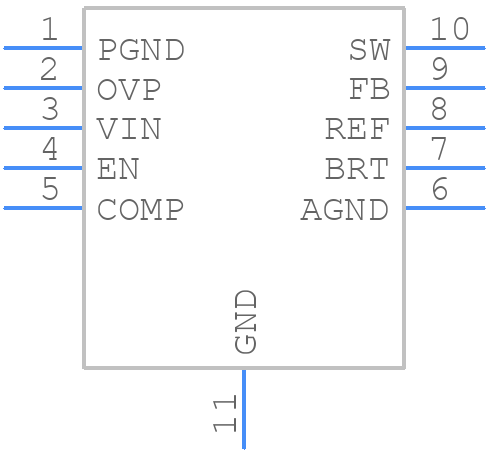

MIC2297-38YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2297-38YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-pin MLF
click to zoom
3D Models
MIC2297-38YML-TR - Microchip - 3D model - Small Outline No-lead - 10-pin MLF
click to zoom

MIC2297-38YML-TR Details

  • Manufacturer Part Number:

    MIC2297-38YML-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MLF-20

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3.15

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    10

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    10 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

MIC2297-38YML-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC2297 evaluation board user's guide, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of input and output capacitors depends on the specific application requirements, such as output voltage, current, and ripple. Microchip recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The datasheet provides more detailed guidelines for capacitor selection.
  • The maximum ambient temperature for MIC2297-38YML-TR is 85°C, as specified in the datasheet. However, the device can operate up to 125°C with derating. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
  • Yes, MIC2297-38YML-TR is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using automotive-grade processes. However, it's essential to review the device's specifications and ensure it meets the specific requirements of your application.
  • Microchip provides a troubleshooting guide in the MIC2297 datasheet, which covers common issues and their possible causes. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify and isolate problems. It's also recommended to review the application circuit and ensure it meets the device's specifications and recommendations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2297-38YML-TR Overview

Use the download button to access the MIC2297-38YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC22, or try a keyword search, such as Display Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
