A good PCB layout for optimal thermal performance involves placing the MIC23050-SYML-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note or a reference design from Microchip can provide more specific guidance.
To ensure reliable operation over the full temperature range, it's essential to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a thermistor or thermocouple to monitor the device temperature and implement thermal protection mechanisms if necessary.
The recommended input and output capacitors for the MIC23050-SYML-TR depend on the specific application and operating conditions. However, as a general guideline, a 10uF to 22uF ceramic capacitor is suitable for the input, and a 10uF to 47uF ceramic capacitor is suitable for the output. It's essential to consider the capacitor's ESR, voltage rating, and temperature coefficient when selecting the right components.
To troubleshoot issues with the MIC23050-SYML-TR, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the input and output waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Operating the MIC23050-SYML-TR at a lower input voltage may affect its performance, efficiency, and reliability. The device may not be able to deliver its full rated current, and its output voltage regulation may be compromised. Consult the datasheet and application notes for guidance on operating the device at lower input voltages.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC23050-SYML-TR Overview

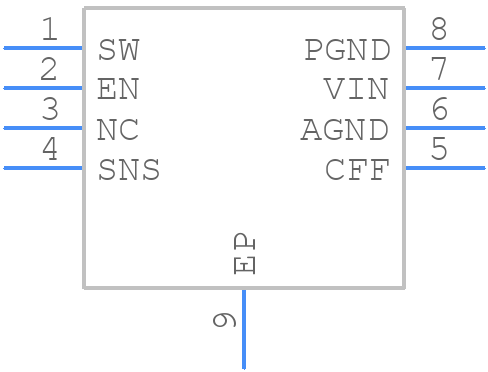

Use the download button to access the MIC23050-SYML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC23,
or try a keyword search, such as Switching Regulator or Controllers
