MIC23153-GYMT-TR - Microchip

Description: Switching Voltage Regulators 4MHz 2A Buck Switcher with Soft Start and Power Good

Download MIC23153-GYMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

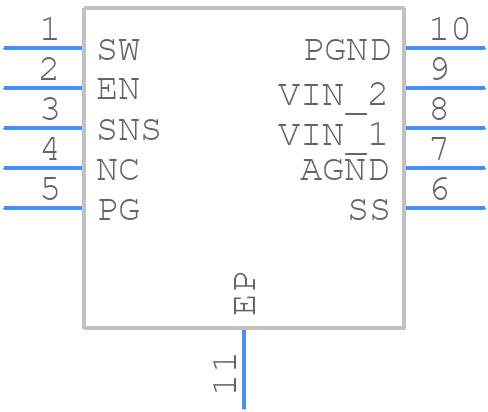

MIC23153-GYMT-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC23153-GYMT-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-PIN THIN MLF
click to zoom
3D Models
MIC23153-GYMT-TR - Microchip - 3D model - Small Outline No-lead - 10-PIN THIN MLF
click to zoom

MIC23153-GYMT-TR Details

  • Manufacturer Part Number:

    MIC23153-GYMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON, SOLCC10,.1,20

  • Pin Count:

    10

  • Manufacturer Package Code:

    UDFN-10

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    3.6 V

  • Output Voltage-Min:

    0.62 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2.5 mm

MIC23153-GYMT-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout for the MIC23153-GYMT-TR in the device's evaluation board documentation. It's essential to follow this layout to ensure optimal thermal performance and minimize thermal resistance.
  • To ensure the device operates within the specified TJ range, it's crucial to provide adequate heat sinking, use a thermally conductive PCB material, and avoid excessive power dissipation. Additionally, consider using thermal simulation tools to estimate the device's thermal performance.
  • The recommended input capacitor value and type depend on the specific application and input voltage. As a general guideline, use a low-ESR ceramic capacitor with a value between 1-10uF, and ensure it's rated for the input voltage. Consult the datasheet and application notes for more information.
  • To troubleshoot output voltage regulation issues, start by verifying the input voltage, output voltage, and feedback resistors. Check for any signs of overheating, and ensure the device is properly soldered and connected. Consult the datasheet and application notes for troubleshooting guidelines and potential causes of output voltage regulation issues.
  • The maximum allowed voltage on the enable (EN) pin is typically limited to the device's input voltage (VIN) or 6V, whichever is lower. Exceeding this voltage may damage the device. Consult the datasheet for specific information on the EN pin voltage limits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC23153-GYMT-TR Overview

Use the download button to access the MIC23153-GYMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC23, or try a keyword search, such as Switching Regulator or Controllers
