MIC23201YML-T5 - Microchip

Description: Switching Voltage Regulators 2MHz PWM 2A Buck Regulator with HSC

Download MIC23201YML-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

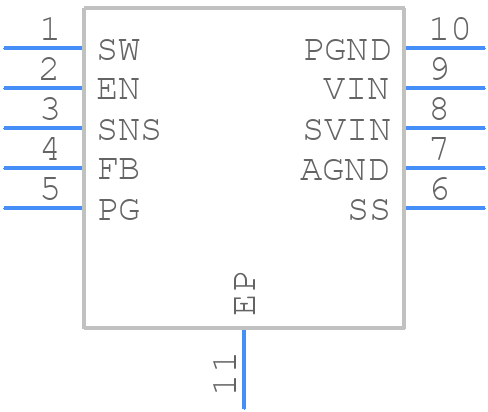

MIC23201YML-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC23201YML-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 11 DFN-+-
click to zoom
3D Models
MIC23201YML-T5 - Microchip - 3D model - Small Outline No-lead - 11 DFN-+-
click to zoom

MIC23201YML-T5 Details

  • Manufacturer Part Number:

    MIC23201YML-T5

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MLF-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MIC23201YML-T5 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the device away from heat sources and ensure good airflow.
  • Use a stable input voltage, ensure proper thermal management, and follow the recommended PCB layout guidelines. Also, consider using a thermal pad or heat sink for high-power applications.
  • Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and potentially even device failure. Ensure proper thermal management to prevent overheating.
  • Yes, but ensure you follow Microchip's guidelines for high-reliability and safety-critical applications, including using the recommended operating conditions, and implementing proper fault detection and correction mechanisms.
  • Use a systematic approach to troubleshoot issues, starting with checking the input voltage, output voltage, and current. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC23201YML-T5 Overview

Use the download button to access the MIC23201YML-T5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC23, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
