MIC23250-G4YMT-TR - Microchip

Description: Switching Voltage Regulators High Efficiency Dual 400mA Synchronous Buck Switcher

Download MIC23250-G4YMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

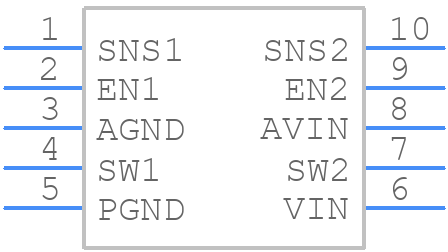

MIC23250-G4YMT-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC23250-G4YMT-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Pin 2mm x 2mm Thin MLF
click to zoom
3D Models
MIC23250-G4YMT-TR - Microchip - 3D model - Small Outline No-lead - 10-Pin 2mm x 2mm Thin MLF
click to zoom

MIC23250-G4YMT-TR Details

  • Manufacturer Part Number:

    MIC23250-G4YMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    UDFN-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 1.8V; ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Max:

    1.23 V

  • Output Voltage-Min:

    1.17 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC23250-G4YMT-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC23250 evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • Microchip provides a range of application notes and design guides that provide detailed configuration and implementation guidelines for specific applications, including USB-C and Power Delivery. These resources can be found on the Microchip website.
  • The MIC23250-G4YMT-TR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, including heat sinking, thermal vias, and PCB layout optimization. Microchip provides thermal management guidelines in the datasheet and application notes.
  • Yes, the MIC23250-G4YMT-TR is capable of supporting high-speed data transmission up to 10 Gbps, making it suitable for applications such as USB 3.2 Gen 2 and DisplayPort. However, it's essential to follow the recommended PCB layout and signal integrity guidelines to ensure reliable high-speed operation.
  • Microchip provides a range of troubleshooting resources, including application notes, FAQs, and technical support. Engineers can also use tools such as oscilloscopes and logic analyzers to debug and troubleshoot issues with the MIC23250-G4YMT-TR.
