MIC23303YML-T5 - Microchip

Description: Switching Voltage Regulators 4MHz PWM 3A Buck Regulator with HyperLight Load, Mode and Power Good

Download MIC23303YML-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

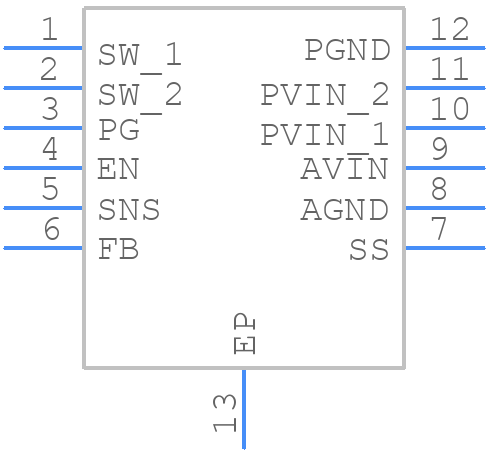

MIC23303YML-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC23303YML-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MIC23303YML-T5
click to zoom
3D Models
MIC23303YML-T5 - Microchip - 3D model - Small Outline No-lead - MIC23303YML-T5
click to zoom

MIC23303YML-T5 Details

  • Manufacturer Part Number:

    MIC23303YML-T5

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    VDFN-12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    ALSO REQUIRE PFM CONTROL TECHNIQUE; ALSO OPERATES IN ADJUSTABLE MODE FROM 0.65 TO 3.6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MIC23303YML-T5 Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias, and a heat sink if necessary. The datasheet provides some guidelines, but a more detailed application note or a thermal simulation can help optimize the design.
  • Follow the power-up sequence and configuration guidelines in the datasheet. Ensure the input voltage is within the recommended range, and the EN pin is properly driven. Also, review the device's configuration registers to ensure they are set correctly.
  • Operating at the maximum TJ can reduce the device's lifespan. It's essential to ensure proper thermal design and heat dissipation to keep the junction temperature below 125°C. Consult the datasheet for thermal derating guidelines.
  • Check the input voltage, output voltage, and feedback resistors. Verify the device is properly configured, and the output capacitor is suitable. Use an oscilloscope to inspect the output voltage waveform and check for signs of oscillation or instability.
  • Follow proper PCB layout and design practices to minimize EMI. Use shielding, filtering, and decoupling capacitors as necessary. Ensure the device is properly bypassed, and the output is filtered to reduce electromagnetic interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC23303YML-T5 Overview

Use the download button to access the MIC23303YML-T5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC23, or try a keyword search, such as Switching Regulator or Controllers
