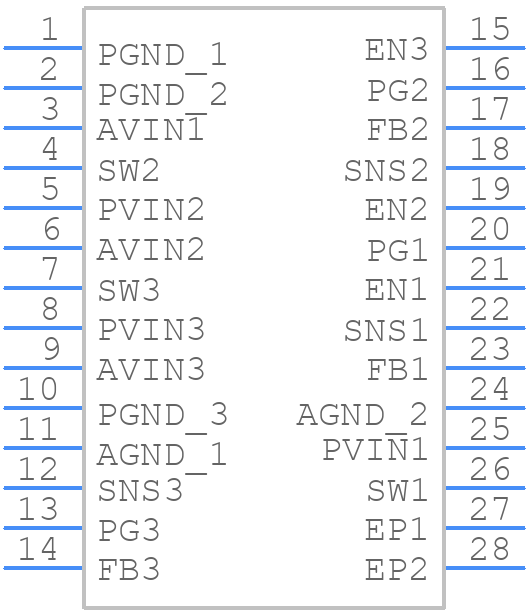

MIC23451-AAAYFL - Microchip

MIC23451-AAAYFL Details

• Manufacturer Part Number:

  MIC23451-AAAYFL

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-26

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.7 V

• Input Voltage-Nom:

  3.6 V

• JESD-30 Code:

  S-XQCC-N26

• Length:

  4 mm

• Number of Functions:

  1

• Number of Terminals:

  26

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2 A

• Output Voltage-Max:

  3.3 V

• Output Voltage-Min:

  1 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC26,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Seated Height-Max:

  0.9 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  3000 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  4 mm
