MIC24051YJL-TR - Microchip

Description: Buck Regulator,12V 6A,Super Switcher II

Download MIC24051YJL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

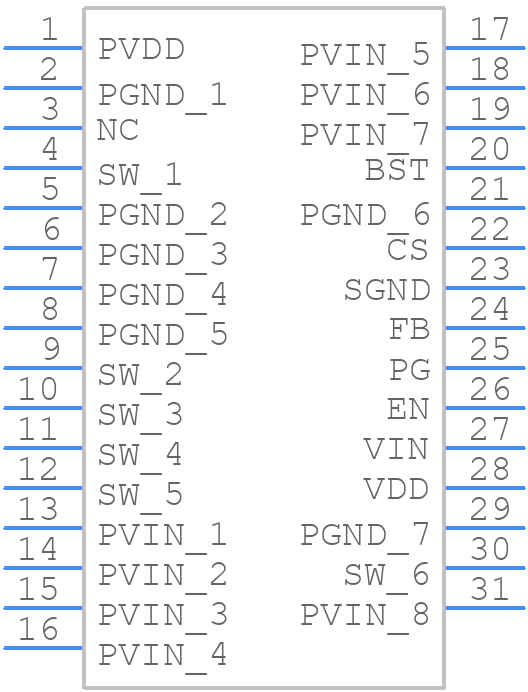

MIC24051YJL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC24051YJL-TR - Microchip PCB footprint - Other - Other - MIC24051YJL-TR
click to zoom
3D Models
MIC24051YJL-TR - Microchip - 3D model - Other - MIC24051YJL-TR
click to zoom

MIC24051YJL-TR Details

  • Manufacturer Part Number:

    MIC24051YJL-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HVQCCN, LCC28,.2X.24,25

  • Pin Count:

    28

  • Manufacturer Package Code:

    VQFN-28

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    19 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2X.24,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    750 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MIC24051YJL-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC24051YJL-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from Microchip provides additional recommendations.
  • To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is within the recommended range.
  • Operating the MIC24051YJL-TR at high ambient temperatures can reduce its reliability and lifespan. It's essential to derate the device's power dissipation and ensure good airflow to prevent overheating. The datasheet provides thermal derating curves to help with this.
  • To troubleshoot issues with the MIC24051YJL-TR, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the PCB layout and component selection meet the recommended guidelines. If the issue persists, consult the Microchip support resources or contact their technical support team.
  • Yes, the MIC24051YJL-TR can be susceptible to electromagnetic interference (EMI). To minimize EMI, ensure good PCB layout practices, use shielding if necessary, and follow the recommended filtering and decoupling guidelines in the datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC24051YJL-TR Overview

Use the download button to access the MIC24051YJL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC24, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
