MIC24052YJL-TR - Microchip

Description: Switching Voltage Regulators 12V, 6A High-Efficiency Buck Regulator SuperSwitcher II

Download MIC24052YJL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

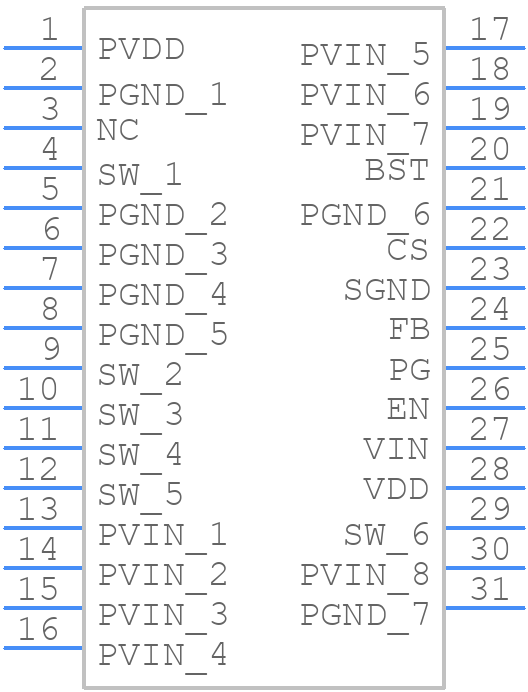

MIC24052YJL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC24052YJL-TR - Microchip PCB footprint - Other - Other - MIC24052YJL-TR-3
click to zoom
3D Models
MIC24052YJL-TR - Microchip - 3D model - Other - MIC24052YJL-TR-3
click to zoom

MIC24052YJL-TR Details

  • Manufacturer Part Number:

    MIC24052YJL-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    VQFN-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    19 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC28(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    750 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MIC24052YJL-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC24052YJL-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from Microchip provides additional recommendations.
  • To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is within the recommended range.
  • Operating the MIC24052YJL-TR at high ambient temperatures can reduce its reliability and lifespan. It's essential to derate the device's power dissipation and ensure good airflow to prevent overheating. The datasheet provides thermal derating curves to help with this.
  • To troubleshoot issues with the MIC24052YJL-TR, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for guidance, or contact Microchip's technical support.
  • The MIC24052YJL-TR is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. Consult Microchip's documentation and technical support to determine the device's suitability for such applications.
