- Part Number MIC24054YJL-TR
- Manufacturer Microchip
- Pin Count 31
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - MIC24054YJL-TR- 28-pin 5mm x 6mm QFN (JL)
- Released Date Mar 19, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MIC24054YJL-TR Details
-
Manufacturer Part Number:
MIC24054YJL-TR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
28
-
Manufacturer Package Code:
VQFN-28
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
7 Weeks
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
14
MIC24054YJL-TR Frequently Asked Questions (FAQs)
-
A good PCB layout for optimal thermal performance involves placing the MIC24054YJL-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from Microchip provides additional recommendations.
-
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, as outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is within the recommended range.
-
Operating the MIC24054YJL-TR at high ambient temperatures can reduce its reliability and lifespan. It's essential to derate the device's power dissipation and ensure good airflow to prevent overheating. The datasheet provides thermal derating curves to help with this.
-
To troubleshoot issues with the MIC24054YJL-TR, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for guidance, or contact Microchip's technical support.
-
The MIC24054YJL-TR is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. Engineers should consult with Microchip's technical support and review the device's reliability and quality data to determine its suitability for such applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
MIC24054YJL-TR Overview

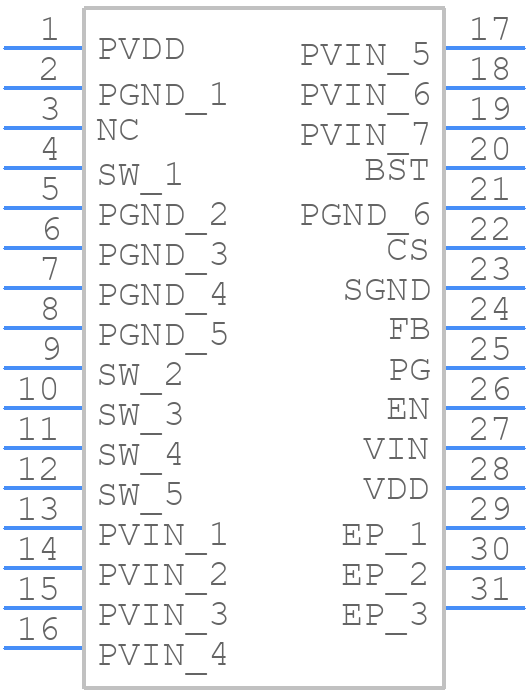

Use the download button to access the MIC24054YJL-TR schematic symbol, PCB footprint, and 3D model.
