MIC24066T-E/QNA - Microchip

Description: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 36-VFQFN Exposed Pad

Download MIC24066T-E/QNA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

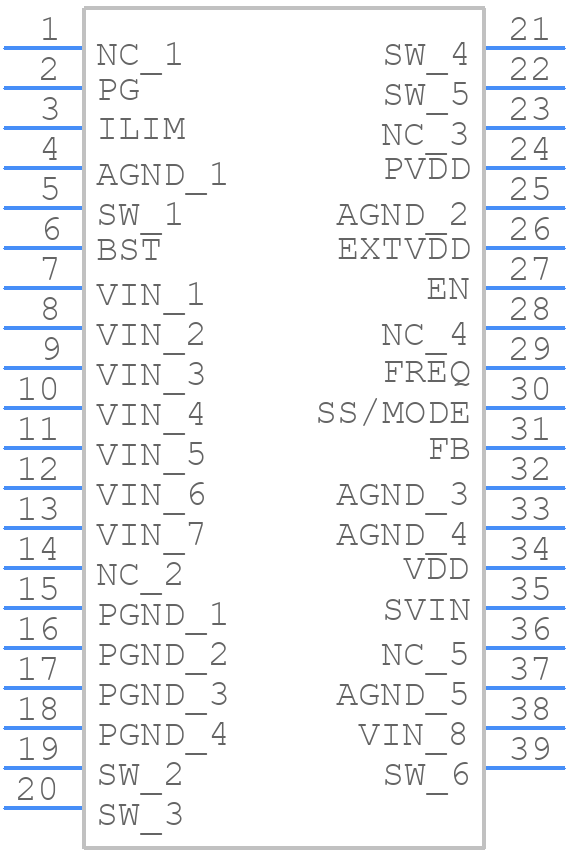

MIC24066T-E/QNA - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC24066T-E/QNA - Microchip PCB footprint - Other - Other - 36-Lead Very Thin Plastic Quad Flat, No Lead Package (QNA) - 5x6x0.9 mm
click to zoom
3D Models
MIC24066T-E/QNA - Microchip - 3D model - Other - 36-Lead Very Thin Plastic Quad Flat, No Lead Package (QNA) - 5x6x0.9 mm
click to zoom

MIC24066T-E/QNA Details

  • Manufacturer Part Number:

    MIC24066T-E/QNA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    VQFN-36

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N36

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    32 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.2X.24,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    880 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MIC24066T-E/QNA Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to have a solid ground plane on the bottom layer of the PCB, and to use thermal vias to connect the exposed pad of the MIC24066T-E/QNA to the ground plane. Additionally, keeping the PCB traces and components away from the device can help reduce thermal resistance.
  • To ensure reliable operation at high temperatures, it is recommended to follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, using a heat sink or thermal interface material can help reduce the junction temperature of the device. It is also important to ensure good airflow and to avoid thermal hotspots on the PCB.
  • The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation of the device.
  • To troubleshoot issues with the device not turning on or not regulating properly, check the input voltage, output voltage, and enable pin voltage to ensure they are within the recommended operating ranges. Also, check for any short circuits or open circuits on the PCB, and verify that the input capacitor is properly connected and of the recommended value.
  • The recommended output capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 47uF. This helps to filter out high-frequency noise and ensure stable operation of the device.
