For optimal thermal performance, it is recommended to have a solid copper plane under the IC, and to use thermal vias to connect the plane to the IC's thermal pad. Additionally, keeping the PCB layer stack-up symmetrical and using a thermal relief pattern around the IC's thermal pad can help to reduce thermal resistance.
To ensure reliable operation over the full operating temperature range, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal management strategy, and ensure that the device is operated within its specified voltage and current ratings. Additionally, consider using a temperature sensor to monitor the device's temperature and take corrective action if necessary.
Operating the MIC2547-2YTS-TR outside of the recommended input voltage range may affect its performance, efficiency, and reliability. Using a lower input voltage may result in reduced output current capability, while using a higher input voltage may increase power dissipation and reduce the device's lifespan. It is essential to consult the datasheet and application notes for specific guidance on input voltage tolerance.
To troubleshoot issues with the MIC2547-2YTS-TR, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the MIC2547-2YTS-TR is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, use a suitable layout, keep the switching node (SW) as short as possible, and use a common-mode choke or EMI filter on the input and output lines. Additionally, ensure that the device is properly decoupled and that the PCB layout follows good EMI/EMC design practices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC2547-2YTS-TR Overview

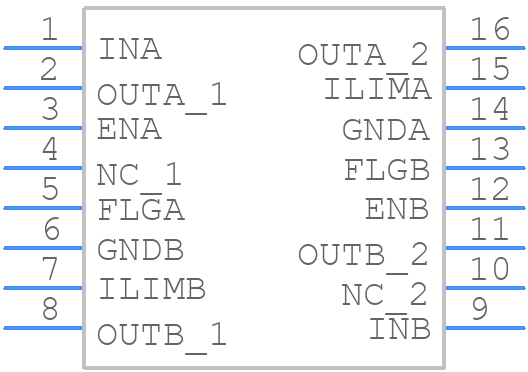

Use the download button to access the MIC2547-2YTS-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC25,
or try a keyword search, such as Peripheral Drivers
