MIC2548A-2YMM - Microchip

Description: Micrel MIC2548A-2YMM, Triple USB Power Switch, High Side, 80mΩ, 2.7 V min. 8-Pin, MSOP

Download MIC2548A-2YMM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

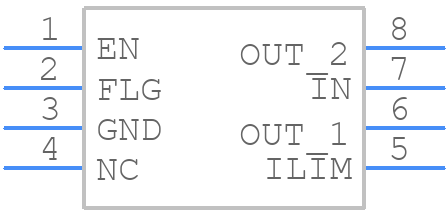

MIC2548A-2YMM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2548A-2YMM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin msop(mm)
click to zoom
3D Models
MIC2548A-2YMM - Microchip - 3D model - Small Outline Packages - 8-pin msop(mm)
click to zoom

MIC2548A-2YMM Details

  • Manufacturer Part Number:

    MIC2548A-2YMM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.09 mm

  • Supply Current-Max (Isup):

    0.16 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2.97 mm

MIC2548A-2YMM Frequently Asked Questions (FAQs)

  • Microchip recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink, and ensure that the device is operated within its specified temperature range (–40°C to +125°C for the MIC2548A-2YMM).
  • The maximum allowed voltage on the input pins is 6V, which is the absolute maximum rating. However, for normal operation, the input voltage should be within the recommended range of 2.7V to 5.5V.
  • Yes, the MIC2548A-2YMM is designed to operate in noisy environments. It has built-in EMI filters and is compliant with CISPR 22 Class B and FCC Part 15 Class B emissions standards. However, it's still important to follow proper PCB layout and design guidelines to minimize noise susceptibility.
  • The typical start-up time for the MIC2548A-2YMM is around 10ms, but this can vary depending on the input voltage, output load, and other factors. It's recommended to consult the datasheet and application notes for more detailed information.
