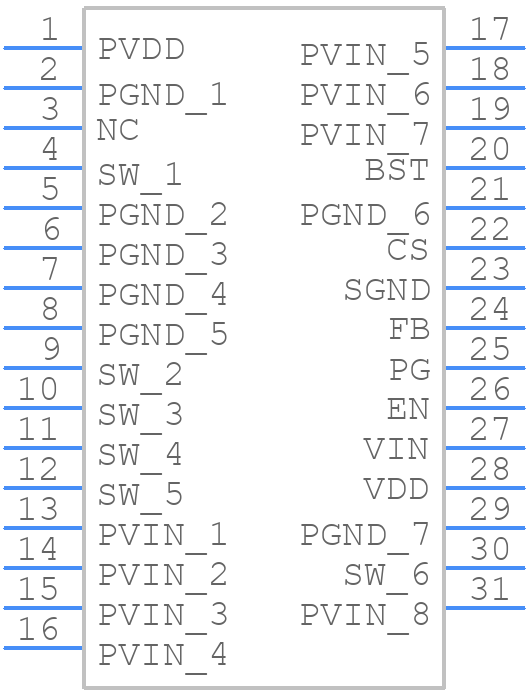

MIC261203YJL-TR - Microchip

MIC261203YJL-TR Details

• Manufacturer Part Number:

  MIC261203YJL-TR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  28

• Manufacturer Package Code:

  VQFN-28

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Additional Feature:

  ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 5.5V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Input Voltage-Max:

  28 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XQCC-N28

• JESD-609 Code:

  e4

• Length:

  6 mm

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  12 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  0.8 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC28,.2X.24,25

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  0.9 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  750 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
