A good PCB layout for optimal thermal performance involves placing the MIC27600YJL-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from Microchip provides additional recommendations.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is within the recommended range.
When designing an input filter for the MIC27600YJL-TR, critical components to consider include the input capacitors, inductors, and resistors. Ensure that the filter components are selected to minimize voltage ripple, noise, and EMI, and that they meet the recommended specifications in the datasheet.
To optimize the MIC27600YJL-TR for low-power operation, consider using the device's power-saving features, such as the low-power mode, and optimizing the external component values to minimize power consumption. Additionally, ensure that the input voltage is within the recommended range, and that the device is operated within its specified temperature range.
Key considerations for thermal management when using the MIC27600YJL-TR include ensuring good airflow around the device, using a heat sink or thermal pad, and optimizing the PCB layout to minimize thermal resistance. Additionally, ensure that the device is operated within its specified temperature range, and that the junction temperature is monitored to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC27600YJL-TR Overview

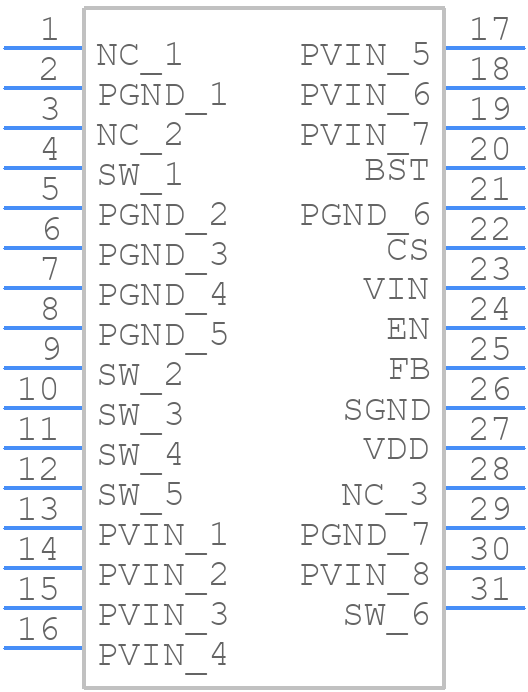

Use the download button to access the MIC27600YJL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC27,
or try a keyword search, such as Switching Regulator or Controllers
