MIC28511-2YFL-T5 - Microchip

Description: Conv DC-DC 4.6V to 60V Synchronous Step Down Single-Out 5.2V 3A 24-Pin FQFN EP T/R

Download MIC28511-2YFL-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

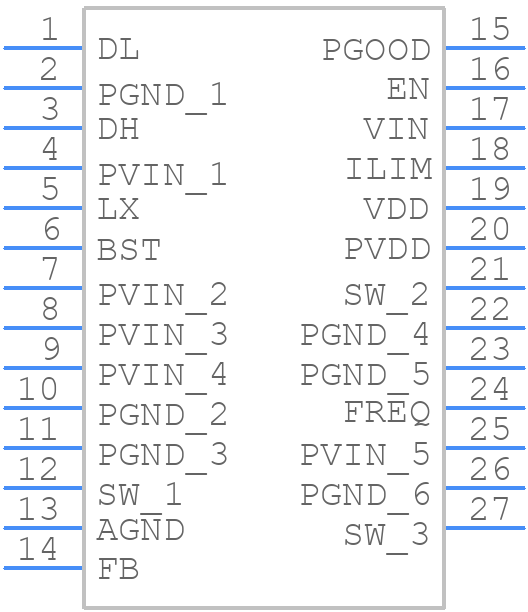

Symbol
MIC28511-2YFL-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC28511-2YFL-T5 - Microchip PCB footprint - Other - Other - FQFN34-24LD-PL-2
click to zoom
3D Models
MIC28511-2YFL-T5 - Microchip - 3D model - Other - FQFN34-24LD-PL-2
click to zoom

MIC28511-2YFL-T5 Details

  • Manufacturer Part Number:

    MIC28511-2YFL-T5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Additional Feature:

    ADJ O/P VOLTAGE IS FROM 0.8V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.12X16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.95 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    800 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

MIC28511-2YFL-T5 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC28511-2YFL-T5 near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note or a reference design from Microchip can provide more specific guidance.
  • To ensure the MIC28511-2YFL-T5 is properly configured for your specific application, carefully review the datasheet and application notes, and consult with Microchip's technical support team if necessary. You may also want to consider using Microchip's configuration tools or software development kits (SDKs) to simplify the configuration process.
  • Potential failure modes of the MIC28511-2YFL-T5 include overheating, overvoltage, and electrical overstress. To mitigate these risks, ensure proper thermal management, follow the recommended operating conditions, and implement protective circuitry such as overvoltage protection and current limiting.
  • The MIC28511-2YFL-T5 is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. Consult with Microchip's technical support team and review relevant industry standards and regulations to ensure compliance.
  • To troubleshoot issues with the MIC28511-2YFL-T5, start by reviewing the datasheet and application notes, and checking for common mistakes such as incorrect configuration or poor PCB layout. Use debugging tools such as oscilloscopes or logic analyzers to identify the root cause of the issue, and consult with Microchip's technical support team if necessary.
