Microchip provides a recommended PCB layout in the MIC28513 evaluation board user's guide, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, as outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is sufficient to filter out noise and transients.
Operating the MIC28513 beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the specified temperature range, input voltage, and output current to maintain optimal performance and reliability.
To troubleshoot OCP issues, first verify that the OCP threshold is set correctly and that the device is not experiencing excessive current draw. Check for any signs of overheating, and ensure that the input voltage is within the recommended range. If the issue persists, consult the datasheet and application notes for guidance on debugging OCP-related issues.
To minimize EMI and EMC issues, follow best practices for PCB layout, component selection, and shielding. Ensure that the device is placed in a shielded area, and that the input and output traces are routed away from sensitive analog signals. Additionally, consider using EMI filters or common-mode chokes to reduce radiated emissions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC28513-1YFL-TR Overview

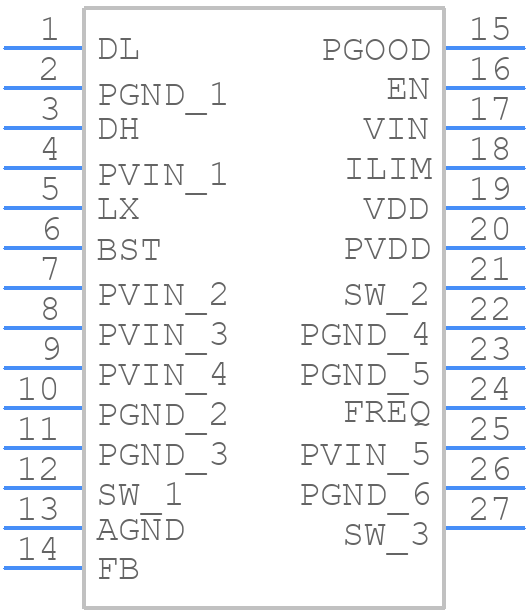

Use the download button to access the MIC28513-1YFL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC28,
or try a keyword search, such as Switching Regulator or Controllers
