- Part Number MIC2870YFT-TR
- Manufacturer Microchip
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 16 qfen
- Released Date Jul 24, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MIC2870YFT-TR Details
-
Manufacturer Part Number:
MIC2870YFT-TR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
UQFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
UQFN-16
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
0
MIC2870YFT-TR Frequently Asked Questions (FAQs)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
-
Ensure that the input voltage rises and falls monotonically, and that the enable pin (EN) is properly driven to prevent unwanted start-up or shutdown. A soft-start circuit can also be used to control the output voltage during start-up.
-
The maximum output current capability of the MIC2870YFT-TR is 2A, but it can be limited by the thermal performance of the PCB and the ambient temperature. De-rating the output current may be necessary in high-temperature applications.
-
The output voltage tolerance of the MIC2870YFT-TR is ±2%. To compensate for this, a voltage feedback loop can be implemented using an external resistor divider network and an op-amp to regulate the output voltage.
-
A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF is recommended for the input capacitor. This helps to filter out input voltage noise and reduce the risk of oscillation.
Trust Checks
Community Provided
System Verified
Community Approved
MIC2870YFT-TR Overview

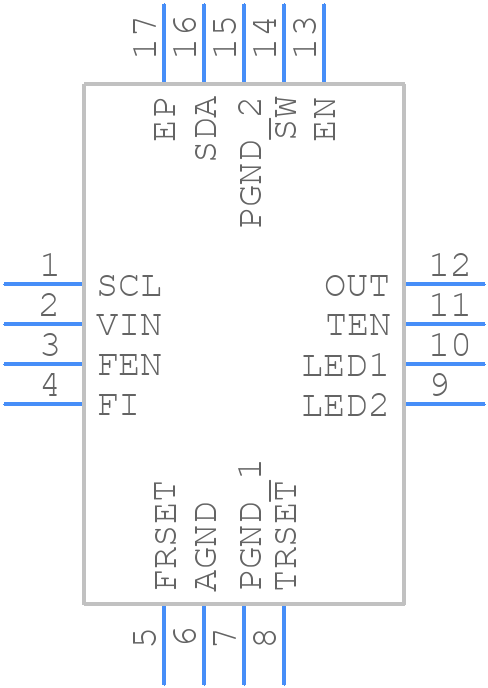

Use the download button to access the MIC2870YFT-TR schematic symbol, PCB footprint, and 3D model.
