MIC2871YMK-TR - Microchip

Description: LED Lighting Drivers 1A Flash LED Driver w/ SWI

Download MIC2871YMK-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

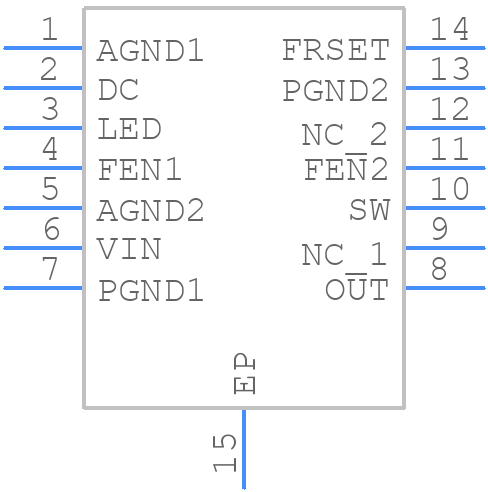

MIC2871YMK-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2871YMK-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MIC2871YMK
click to zoom
3D Models
MIC2871YMK-TR - Microchip - 3D model - Small Outline No-lead - MIC2871YMK
click to zoom

MIC2871YMK-TR Details

  • Manufacturer Part Number:

    MIC2871YMK-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HVSON, SOLCC14,.08,16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC2871YMK-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MIC2871YMK-TR evaluation board design files, which can be downloaded from their website. The layout includes a solid ground plane, decoupling capacitors, and thermal vias to minimize EMI and thermal issues.
  • The inductor selection depends on the output current, switching frequency, and desired ripple current. Microchip provides an inductor selection guide in the MIC2871YMK-TR datasheet, which can be used to select a suitable inductor. Additionally, online inductor selection tools can also be used to find a suitable inductor.
  • The MIC2871YMK-TR can operate in an ambient temperature range of -40°C to +125°C. However, the device's junction temperature (TJ) should not exceed 150°C. The ambient temperature should be derated based on the device's power dissipation and thermal resistance.
  • Yes, the MIC2871YMK-TR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications and is also suitable for high-reliability applications such as industrial, medical, and aerospace.
  • Microchip provides a troubleshooting guide in the MIC2871YMK-TR datasheet, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and thermal cameras to debug the issue. It's also recommended to review the PCB layout, component selection, and thermal design to ensure they meet the recommended guidelines.
