MIC2875-5.0YMT-T5 - Microchip

Description: Switching Voltage Regulators Ultrasonic Synchronous Boost Regulator

Download MIC2875-5.0YMT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

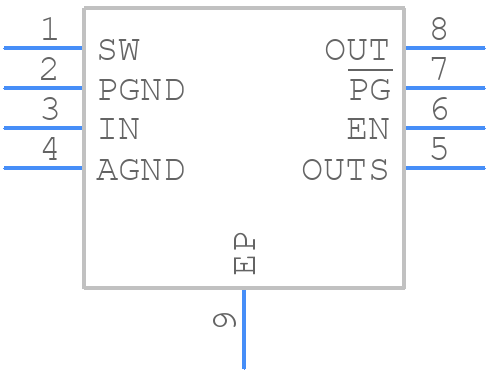

MIC2875-5.0YMT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2875-5.0YMT-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - TDFN22-8LD-PL-1
click to zoom
3D Models
MIC2875-5.0YMT-T5 - Microchip - 3D model - Small Outline No-lead - TDFN22-8LD-PL-1
click to zoom

MIC2875-5.0YMT-T5 Details

  • Manufacturer Part Number:

    MIC2875-5.0YMT-T5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.8 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    45 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC2875-5.0YMT-T5 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC2875-5.0YMT-T5 near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
  • To ensure the output voltage is stable and accurate, it's crucial to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and the output is properly decoupled with a capacitor.
  • The MIC2875-5.0YMT-T5 is rated for operation up to 125°C ambient temperature. However, it's essential to consider the device's power dissipation, thermal resistance, and airflow when operating at high temperatures to ensure reliable operation.
  • Yes, the MIC2875-5.0YMT-T5 is suitable for high-reliability and automotive applications. However, it's essential to consult with Microchip Technology Inc. for specific requirements and to ensure the device meets the necessary qualifications and certifications for your application.
  • To troubleshoot issues with the MIC2875-5.0YMT-T5, start by consulting the datasheet and application notes. Check the input voltage, output voltage, and current consumption. Use an oscilloscope to monitor the output voltage and current. If the issue persists, contact Microchip Technology Inc. for further support.
