MIC2875-5.5YMT-TR - Microchip

Description: Switching Voltage Regulators Ultrasonic Synchronous Boost Regulator

Download MIC2875-5.5YMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

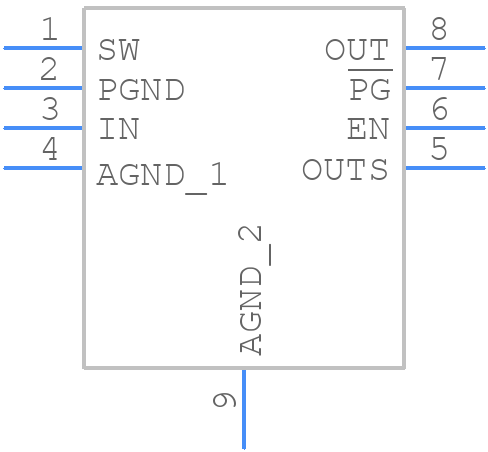

MIC2875-5.5YMT-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2875-5.5YMT-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead UDFN 2 mm x 2 mm
click to zoom
3D Models
MIC2875-5.5YMT-TR - Microchip - 3D model - Small Outline No-lead - 8-Lead UDFN 2 mm x 2 mm
click to zoom

MIC2875-5.5YMT-TR Details

  • Manufacturer Part Number:

    MIC2875-5.5YMT-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.8 A

  • Output Voltage-Nom:

    5.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    45 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC2875-5.5YMT-TR Frequently Asked Questions (FAQs)

  • The MIC2875-5.5YMT-TR can handle a maximum input voltage of 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
  • To ensure the MIC2875-5.5YMT-TR operates within its specified temperature range of -40°C to 125°C, provide adequate heat sinking, avoid overheating, and ensure good airflow around the device. Also, follow the recommended PCB layout and thermal design guidelines.
  • The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor (X5R or X7R dielectric) to minimize voltage ripple and ensure stable operation.
  • The output voltage of the MIC2875-5.5YMT-TR can be adjusted by using an external resistor divider network between the VOUT pin and the GND pin. The output voltage can be calculated using the formula: VOUT = 5.5V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The MIC2875-5.5YMT-TR requires a minimum load current of 1mA to operate stably. If the load current is less than 1mA, the output voltage may not be regulated accurately, and the device may enter a low-power state.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2875-5.5YMT-TR Overview

Use the download button to access the MIC2875-5.5YMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC28, or try a keyword search, such as Switching Regulator or Controllers
