MIC2876-5.5YMT-T5 - Microchip

Description: Linear Voltage Regulators 120Vin 150mA Ultra-Low Iq High-PSRR Linear Requlator

Download MIC2876-5.5YMT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

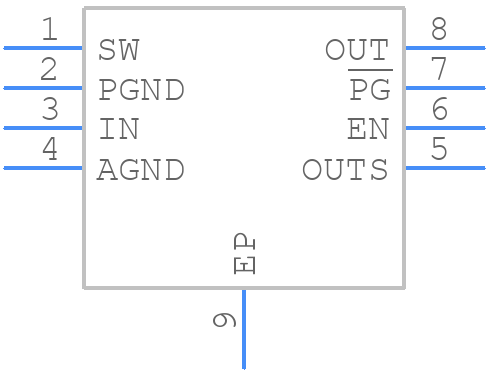

MIC2876-5.5YMT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2876-5.5YMT-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - tdfn 2x2
click to zoom
3D Models
MIC2876-5.5YMT-T5 - Microchip - 3D model - Small Outline No-lead - tdfn 2x2
click to zoom

MIC2876-5.5YMT-T5 Details

  • Manufacturer Part Number:

    MIC2876-5.5YMT-T5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-07-07

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.8 A

  • Output Voltage-Nom:

    5.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MIC2876-5.5YMT-T5 Frequently Asked Questions (FAQs)

  • The maximum input voltage that the MIC2876-5.5YMT-T5 can handle is 6.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable operation.
  • To ensure the MIC2876-5.5YMT-T5 is stable and doesn't oscillate, make sure to follow the recommended layout guidelines, use a suitable output capacitor, and provide a stable input voltage. Additionally, ensure that the device is operated within the recommended operating conditions.
  • The minimum input voltage required for the MIC2876-5.5YMT-T5 to operate is 2.7V, as specified in the datasheet. However, the device may not operate efficiently or reliably below this voltage.
  • The MIC2876-5.5YMT-T5 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to consult the datasheet and application notes for guidance on operating the MIC2876-5.5YMT-T5 in high-temperature environments.
  • The output voltage of the MIC2876-5.5YMT-T5 is fixed at 5.5V. The device is a fixed-output voltage regulator, and the output voltage is not adjustable.
