MIC29301-12WU - Microchip

MIC29301-12WU Details

• Manufacturer Part Number:

  MIC29301-12WU

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

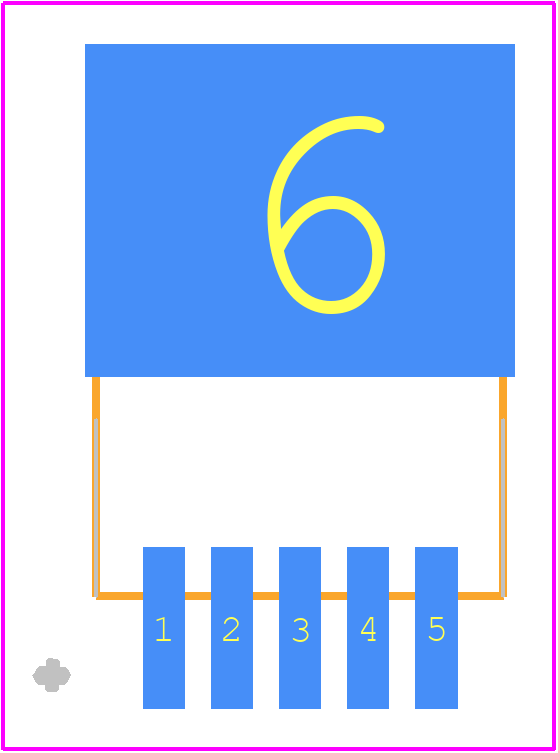

• Package Description:

  TO-263, 5 PIN

• Pin Count:

  5

• Manufacturer Package Code:

  DDPAK-5

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  17 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.6 V

• Dropout Voltage1-Nom:

  0.37 V

• Input Voltage Absolute-Max:

  60 V

• Input Voltage-Max:

  26 V

• Input Voltage-Min:

  13 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e3

• Length:

  10.363 mm

• Line Regulation-Max:

  0.06%

• Load Regulation-Max:

  0.12%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  3 A

• Output Voltage1-Max:

  12.24 V

• Output Voltage1-Min:

  11.76 V

• Output Voltage1-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SMSIP5H,.6,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  TS 16949

• Seated Height-Max:

  4.902 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.702 mm

• Terminal Position:

  SINGLE

• Voltage Tolerance-Max:

  2%

• Width:

  8.7805 mm
