MIC29302WU-TR - Microchip

Description: Microchip MIC29302WU-TR, LDO Regulator, 3A Adjustable, ±2%, 2.25 → 26 Vin 5-Pin D2PAK

Download MIC29302WU-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIC29302WU-TR - Microchip - PCB symbol
click to zoom
PCB Footprints

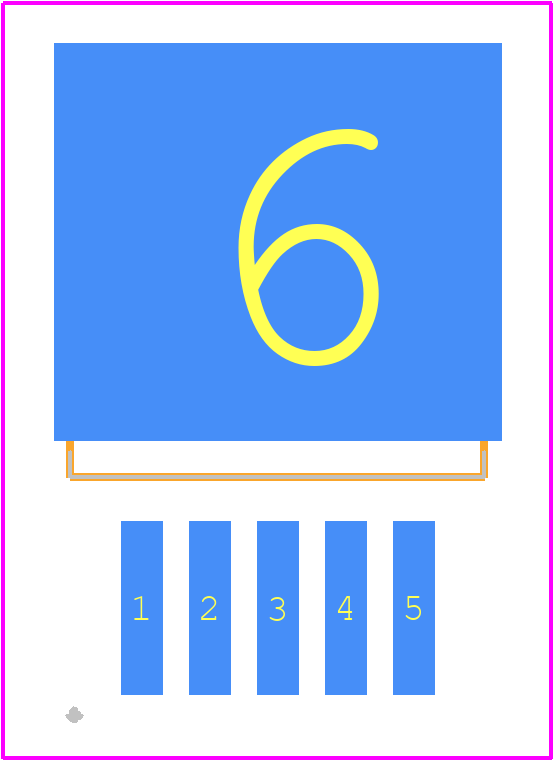

MIC29302WU-TR - Microchip PCB footprint - Other - Other - TO263-5LD
click to zoom
3D Models
MIC29302WU-TR - Microchip - 3D model - Other - TO263-5LD
click to zoom

MIC29302WU-TR Details

  • Manufacturer Part Number:

    MIC29302WU-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, TO-263, D2PAK-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    DDPAK-5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.37 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.363 mm

  • Load Regulation-Max(%):

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    25 V

  • Output Voltage1-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP5H,.6,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.902 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.702 mm

  • Terminal Position:

    SINGLE

  • Width:

    8.7805 mm

MIC29302WU-TR Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias under the package, and a heat sink if possible. Refer to Microchip's application note AN1123 for more information.
  • To ensure a stable output voltage, make sure to use a high-quality output capacitor with a low ESR, and follow the recommended output capacitor selection guidelines in the datasheet. Additionally, ensure the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The maximum input voltage that can be applied to the MIC29302WU-TR is 26V, but it's recommended to operate the device within the recommended input voltage range of 4.5V to 24V for optimal performance and reliability.
  • The MIC29302WU-TR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. Refer to the datasheet for more information on thermal derating.
  • To protect the MIC29302WU-TR from input voltage transients and surges, use a TVS diode or a transient voltage suppressor in parallel with the input capacitor. This will help to clamp the input voltage and prevent damage to the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC29302WU-TR Overview

Use the download button to access the MIC29302WU-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC29, or try a keyword search, such as Linear Regulator ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
