MIC2951-03YMM - Microchip

Description: Low Dropout Regulators(LDO) Positive Adjustable (Fixed) 600mV @ 150mA 30V 1.24V (5V) 29V 150mA MSOP-8 RoHS

Download MIC2951-03YMM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

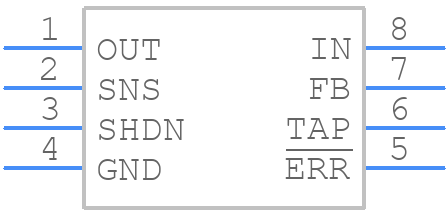

Symbol
MIC2951-03YMM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2951-03YMM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - msop8
click to zoom
3D Models
MIC2951-03YMM - Microchip - 3D model - Small Outline Packages - msop8
click to zoom

MIC2951-03YMM Details

  • Manufacturer Part Number:

    MIC2951-03YMM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    60 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max:

    0.02%

  • Line Regulation-Max (%/V):

    0.02

  • Load Regulation-Max:

    0.015%

  • Load Regulation-Max(%):

    0.3%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    29 V

  • Output Voltage1-Min:

    1.24 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.2

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

MIC2951-03YMM Frequently Asked Questions (FAQs)

  • A good PCB layout for MIC2951-03YMM involves keeping the input and output capacitors close to the IC, using a solid ground plane, and separating the analog and digital grounds. Additionally, it's recommended to use a ferrite bead or a small inductor in series with the input voltage to filter out high-frequency noise.
  • To ensure stability, make sure the output capacitor is within the recommended range (10uF to 100uF), and the ESR (Equivalent Series Resistance) is within the recommended range (0.05Ω to 5Ω). Also, ensure the input voltage is within the recommended range (4.5V to 15V) and the output current is within the recommended range (up to 1A).
  • The maximum ambient temperature for MIC2951-03YMM is 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, MIC2951-03YMM is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's essential to follow the recommended operating conditions and ensure proper design and testing to meet the specific application requirements.
  • To troubleshoot issues with MIC2951-03YMM, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are within the recommended range and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Microchip's technical support.
