MIC2981/82YN - Microchip

MIC2981/82YN Details

• Manufacturer Part Number:

  MIC2981/82YN

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

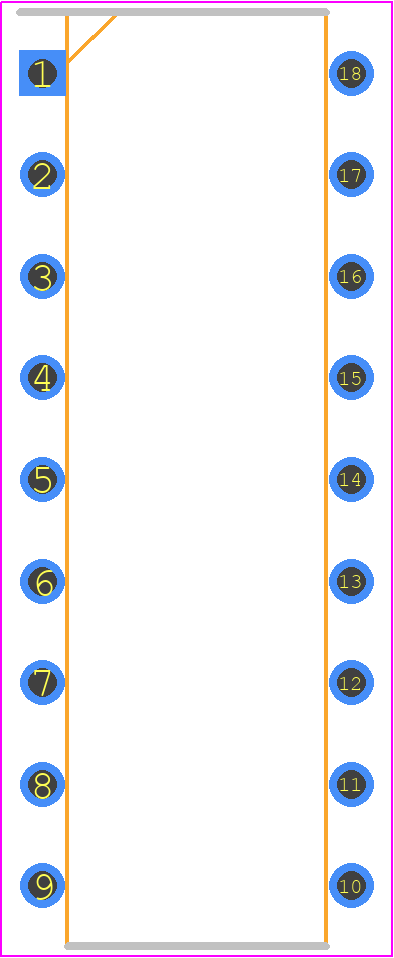

• Package Description:

  DIP-18

• Pin Count:

  18

• Manufacturer Package Code:

  PDIP-18

• Country Of Origin:

  Philippines, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Additional Feature:

  LG-MAX

• Built-in Protections:

  TRANSIENT

• Driver Number of Bits:

  8

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDIP-T18

• JESD-609 Code:

  e3

• Length:

  23.37 mm

• Number of Functions:

  8

• Number of Terminals:

  18

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SOURCE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Seated Height-Max:

  3.937 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  50 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  35 V

• Surface Mount:

  NO

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  10 µs

• Turn-on Time:

  2 µs

• Width:

  7.62 mm
